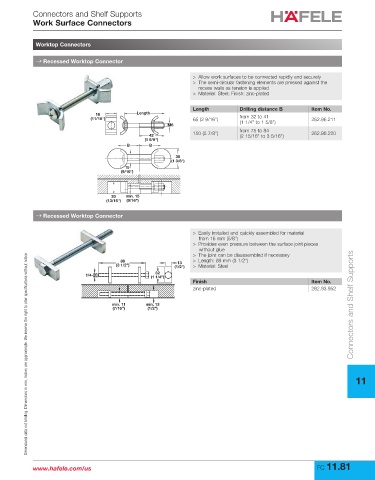

Page 1251 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Connectors and Shelf Supports
Work Surface Connectors

Worktop Connectors

→ Recessed Worktop Connector

> Allow work surfaces to be connected rapidly and securely
> The semi-circular fastening elements are pressed against the
recess walls as tension is applied
> Material: Steel; Finish: zinc-plated

Length Drilling distance B Item No.
18 Length from 32 to 41
(11/16") 65 (2 9/16") (1 1/4" to 1 5/8") 262.96.211
M6
150 (5 7/8") from 75 to 84 262.96.220
42 (2 15/16" to 3 5/16")
(1 5/8")
B B
35
(1 3/8")
15
(9/16")

20 min. 15
(13/16") (9/16")
→ Recessed Worktop Connector

> Easily installed and quickly assembled for material
from 16 mm (5/8")
> Provides even pressure between the surface joint pieces
without glue
> The joint can be disassembled if necessary
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
89 13 > Length: 89 mm (3 1/2")
(3 1/2") (1/2") > Material: Steel
32
1/4-20 (1 1/4")
Finish Item No.
zinc-plated 262.93.952

min. 11 min. 13 Connectors and Shelf Supports
(7/16") (1/2")

11

www.hafele.com/us FC 11.81
