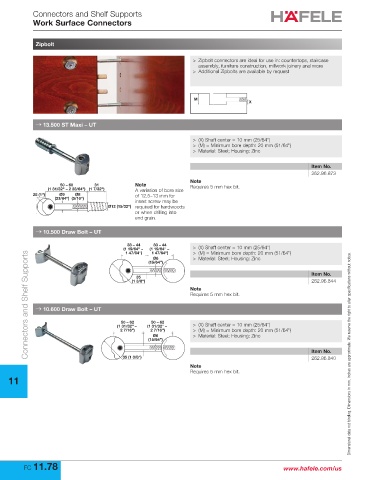

Page 1248 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Connectors and Shelf Supports
Work Surface Connectors

Zipbolt

> Zipbolt connectors are ideal for use in: countertops, staircase
assembly, furniture construction, millwork joinery and more
> Additional Zipbolts are available by request

M
X

→ 13.500 ST Maxi – UT

> (X) Shaft center = 10 mm (25/64")
> (M) = Minimum bore depth: 20 mm (51/64")
> Material: Steel; Housing: Zinc

Item No.
262.96.873
Note
50 – 60 31 Note
(1 31/32" – 2 23/64") (1 7/32") A variation of bore size Requires 5 mm hex bit.
25 (1") Ø9 Ø8 of 12.5–13 mm for
(23/64") (5/16")
insert screw may be
Ø12 (15/32") required for hardwoods
or when drilling into
end grain.

→ 10.500 Draw Bolt – UT
33 – 44 33 – 44
(1 19/64" – (1 19/64" – > (X) Shaft center = 10 mm (25/64")
1 47/64") 1 47/64") > (M) = Minimum bore depth: 20 mm (51/64")
Connectors and Shelf Supports
Ø6 > Material: Steel; Housing: Zinc
(15/64")
Item No.
35
(1 3/8") 262.96.844
Note
Requires 5 mm hex bit.

→ 10.600 Draw Bolt – UT

50 – 62 50 – 62
(1 31/32" – (1 31/32" – > (X) Shaft center = 10 mm (25/64")
2 7/16") 2 7/16") > (M) = Minimum bore depth: 20 mm (51/64")
Ø6 > Material: Steel; Housing: Zinc
(15/64")
Item No.
35 (1 3/8") 262.96.840 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Note
Requires 5 mm hex bit.
11

FC 11.78 www.hafele.com/us
