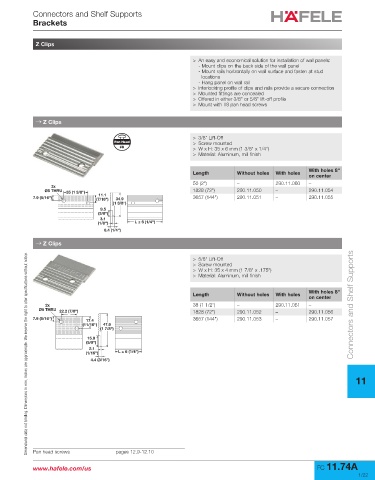

Connectors and Shelf Supports
Brackets

Z Clips

> An easy and economical solution for installation of wall panels:
- Mount clips on the back side of the wall panel
- Mount rails horizontally on wall surface and fasten at stud
locations
- Hang panel on wall rail
> Interlocking profile of clips and rails provide a secure connection
> Mounted fittings are concealed
> Offered in either 3/8" or 5/8" lift-off profile
> Mount with #8 pan head screws

→ Z Clips

> 3/8" Lift-Off
Pan Head > Screw mounted
#8 > W x H: 35 x 6 mm (1 3/8" x 1/4")
> Material: Aluminum, mill finish

Length Without holes With holes With holes 8"
on center
50 (2") – 290.11.060 –
2x
Ø5 THRU 35 (1 3/8") 1828 (72") 290.11.050 – 290.11.054
11.1
7.9 (5/16") (7/16") 34.9 3657 (144") 290.11.051 – 290.11.055
(1 3/8")
9.5
(3/8")
3.1
(1/8") L ± 6 (1/4")
6.4 (1/4")
→ Z Clips
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> 5/8" Lift-Off
> Screw mounted
> W x H: 35 x 4 mm (1 7/8" x .175")
> Material: Aluminum, mill finish

Length Without holes With holes With holes 8"
on center
2x 38 (1 1/2") – 290.11.061 – Connectors and Shelf Supports
Ø5 THRU 22.2 (7/8") 1828 (72") 290.11.052 – 290.11.056
7.9 (5/16") 17.4 3657 (144") 290.11.053 – 290.11.057
(11/16") 47.6
(1 7/8")
15.9
(5/8")
2.1
(1/16") L ± 6 (1/4")
4.4 (3/16")

11

Pan head screws pages 12.9-12.10
