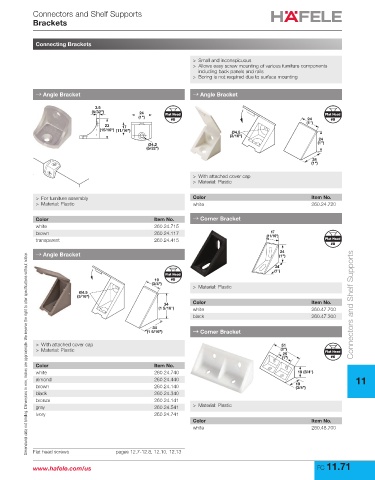

Connectors and Shelf Supports
Brackets

Connecting Brackets

> Small and inconspicuous
> Allows easy screw mounting of various furniture components
including back panels and rails
> Boring is not required due to surface mounting

→ Angle Bracket → Angle Bracket

3.5
(5/32") 24 Flat Head Flat Head
(1")
#8 24 #8
23 17 (1")
(15/16") (11/16") Ø4.5
(3/16")
24
Ø4.2 (1")
(5/32")
24
(1")
> With attached cover cap
> Material: Plastic

> For furniture assembly Color Item No.
> Material: Plastic white 260.24.720

Color Item No. → Corner Bracket
white 260.24.715
17
brown 260.24.117 (11/16")
transparent 260.24.415 Flat Head
#8
24
→ Angle Bracket (1")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
24
(1")
Flat Head
19 #8
(3/4")
> Material: Plastic
Ø4.5
(3/16")
34 Color Item No. Connectors and Shelf Supports
(1 5/16") white 260.47.700
black 260.47.300
34
(1 5/16") → Corner Bracket

> With attached cover cap 51
> Material: Plastic (2") Flat Head
25
(1") #6
Color Item No.
white 260.24.740 19 (3/4")
almond 260.24.440 11
brown 260.24.140 19
(3/4")
black 260.24.340
bronze 260.24.141
gray 260.24.541 > Material: Plastic
ivory 260.24.741
Color Item No.
white 260.48.700

Flat head screws pages 12.7-12.8, 12.10, 12.13

www.hafele.com/us FC 11.71
