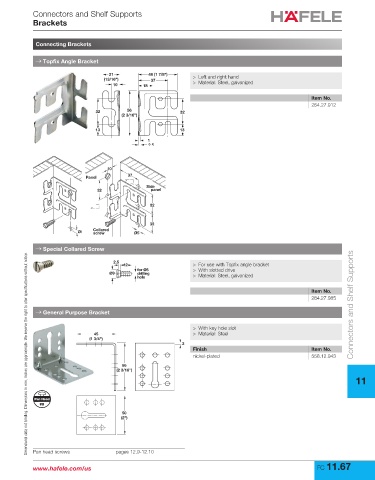

Connectors and Shelf Supports
Brackets
Connecting Brackets
→ Topfix Angle Bracket
21 48 (1 7/8") > Left and right hand
(13/16") 37 > Material: Steel, galvanized
10 18
Item No.
264.27.912
32 56 32
(2 3/16")
13 13
1
2.5
10
37
Panel
Side
32 panel
32
32
Ø5 Collared Ø5
screw
→ Special Collared Screw
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
2.5
12 > For use with Topfix angle bracket
for Ø5 > With slotted drive
Ø9 drilling > Material: Steel, galvanized
hole
Item No.
264.27.985
→ General Purpose Bracket Connectors and Shelf Supports
> With key hole slot
45 > Material: Steel
(1 3/4")
2
Finish Item No.
nickel-plated 558.12.943
55
(2 3/16")
11
Pan Head
#8
50
(2")
Pan head screws pages 12.9-12.10
