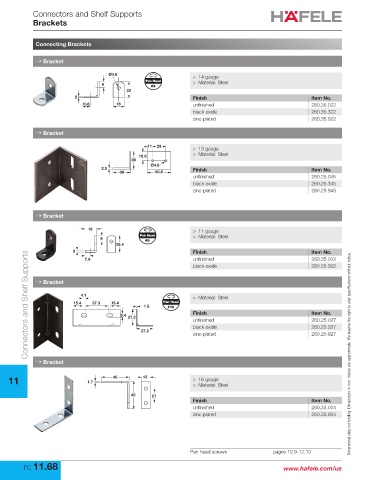

P. 1236
Connectors and Shelf Supports
Brackets
Connecting Brackets
→ Bracket
Ø4.8 > 14 gauge
Pan Head > Material: Steel
9 #9
23
2 Finish Item No.
10.6 16 unfinished 260.35.022
black oxide 260.35.322
zinc-plated 260.35.922
→ Bracket
11 29 > 13 gauge
> Material: Steel
19.6
38
Ø4.8
2.5 Finish Item No.
38 50.8
unfinished 260.25.045
black oxide 260.25.345
zinc-plated 260.25.945
→ Bracket
18 > 11 gauge
Pan Head > Material: Steel
9
#9
25.4
3 Finish Item No.
Connectors and Shelf Supports
7.9 unfinished 260.35.002
black oxide 260.35.302
→ Bracket
4.1 > Material: Steel
15.4 37.3 15.4 Pan Head
1.5 #10
Finish Item No.
5.4 27.2
unfinished 260.25.027
black oxide 260.25.327
27.2
zinc-plated 260.25.927
→ Bracket Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
11 1.7 45 13 > 16 gauge
11
> Material: Steel
45 21
Finish Item No.
unfinished 260.33.004
zinc-plated 260.33.904
Pan head screws pages 12.9-12.10
FC 11.68 www.hafele.com/us
