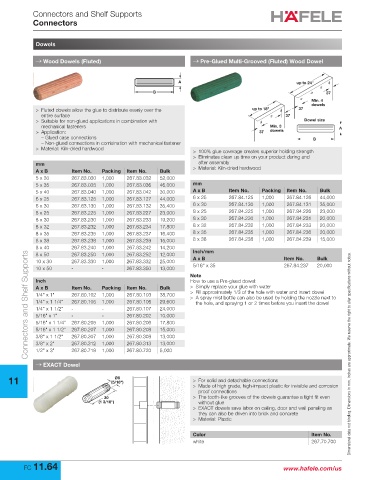

Page 1232 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Connectors and Shelf Supports
Connectors

Dowels

→ Wood Dowels (Fluted) → Pre-Glued Multi-Grooved (Fluted) Wood Dowel

A up to 24"
B 37
Min. 4
dowels
> Fluted dowels allow the glue to distribute evenly over the up to 18" 37
entire surface 37
> Suitable for non-glued applications in combination with Dowel size
mechanical fasteners Min. 3 A
> Application: 37 dowels
– Glued case connections B
– Non-glued connections in combination with mechanical fastener
> Material: Kiln-dried hardwood
> 100% glue coverage creates superior holding strength
> Eliminates clean up time on your product during and
mm after assembly
A x B Item No. Packing Item No. Bulk > Material: Kiln-dried hardwood
5 x 30 267.83.030 1,000 267.83.032 52,000
5 x 35 267.83.035 1,000 267.83.036 46,000 mm
5 x 40 267.83.040 1,000 267.83.042 30,000 A x B Item No. Packing Item No. Bulk
6 x 25 267.83.125 1,000 267.83.127 44,000 6 x 25 267.84.125 1,000 267.84.126 44,000
6 x 30 267.83.130 1,000 267.83.132 35,400 6 x 30 267.84.130 1,000 267.84.131 35,000
8 x 25 267.83.225 1,000 267.83.227 23,000 8 x 25 267.84.225 1,000 267.84.226 23,000
8 x 30 267.83.230 1,000 267.83.233 19,200 8 x 30 267.84.230 1,000 267.84.231 20,000
8 x 32 267.83.232 1,000 267.83.234 17,800 8 x 32 267.84.232 1,000 267.84.233 20,000
8 x 35 267.83.235 1,000 267.83.237 16,400 8 x 35 267.84.235 1,000 267.84.236 20,000
8 x 38 267.83.238 1,000 267.83.239 15,000 8 x 38 267.84.238 1,000 267.84.239 15,000
8 x 40 267.83.240 1,000 267.83.242 14,200
Connectors and Shelf Supports
8 x 50 267.83.250 1,000 267.83.252 12,000 Inch/mm
10 x 30 267.83.330 1,000 267.83.332 25,000 A x B Item No. Bulk
10 x 50 - - 267.83.350 13,000 5/16" x 35 267.84.237 20,000
Note
Inch How to use a Pre-glued dowel:
A x B Item No. Packing Item No. Bulk > Simply replace your glue with water
1/4" x 1" 267.80.102 1,000 267.80.103 38,700 > Fill approximately 1/3 of the hole with water and insert dowel
> A spray mist bottle can also be used by holding the nozzle next to
1/4" x 1 1/4" 267.80.105 1,000 267.80.106 29,600 the hole, and spraying 1 or 2 times before you insert the dowel
1/4" x 1 1/2" - - 267.80.107 24,000
5/16" x 1" - - 267.80.202 10,000
5/16" x 1 1/4" 267.80.205 1,000 267.80.206 17,800
5/16" x 1 1/2" 267.80.207 1,000 267.80.208 15,000
3/8" x 1 1/2" 267.80.307 1,000 267.80.308 13,000
3/8" x 2" 267.80.312 1,000 267.80.313 13,000
1/2" x 3" 267.80.719 1,000 267.80.720 5,000 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

→ EXACT Dowel
11 (5/16") > For solid and detachable connections
Ø8
> Made of high grade, high-impact plastic for invisible and corrosion
proof connections
30 > The tooth-like grooves of the dowels guarantee a tight fit even
(1 3/16") without glue
> EXACT dowels save labor on ceiling, door and wall paneling as
they can also be driven into brick and concrete
> Material: Plastic

Color Item No.
white 267.70.700

FC 11.64 www.hafele.com/us
