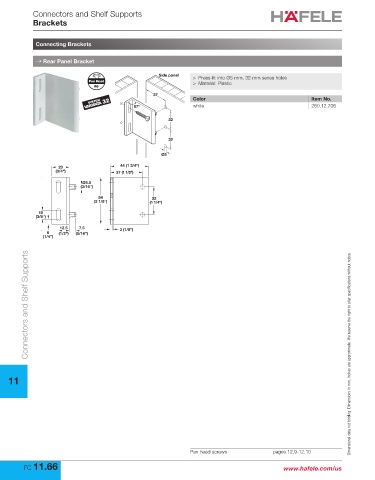

Connectors and Shelf Supports
Brackets
Connecting Brackets
→ Rear Panel Bracket
Side panel > Press-fit into Ø5 mm, 32 mm series holes
Pan Head > Material: Plastic
#6
37
Color Item No.
87º white 260.12.706
32
32
Ø5
20 44 (1 3/4")
(3/4") 37 (1 1/2")
Ø5.5
(3/16")
54 32
(2 1/8") (1 1/4")
10
(3/8")
12.5 7.5 3 (1/8")
6 (1/2") (5/16")
(1/4")
Connectors and Shelf Supports
11 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Pan head screws pages 12.9-12.10
