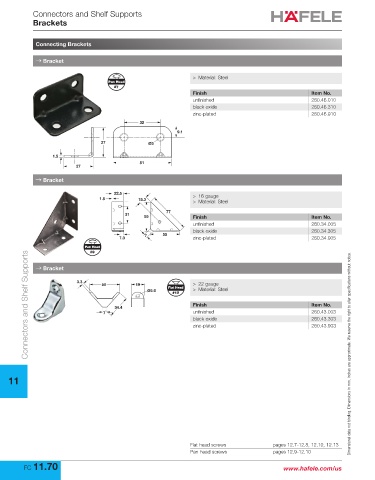

P. 1238
Connectors and Shelf Supports
Brackets
Connecting Brackets
→ Bracket
> Material: Steel
Pan Head
#7
Finish Item No.
unfinished 260.46.010
black oxide 260.46.310
zinc-plated 260.46.910
32
9.1
27 Ø5
1.5
51
27
→ Bracket
22.5
1.5 15.3 > 16 gauge
> Material: Steel
77
31 55 Finish Item No.
unfinished 260.34.005
black oxide 260.34.305
7 55
7.3 zinc-plated 260.34.905
Pan Head
#9
Connectors and Shelf Supports
→ Bracket
3.3
50 19 > 22 gauge
Flat Head
Ø5.6 > Material: Steel
#10
Finish Item No.
34.4
7 unfinished 260.43.003
black oxide 260.43.303
zinc-plated 260.43.903
11
11 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Flat head screws pages 12.7-12.8, 12.10, 12.13
Pan head screws pages 12.9-12.10
