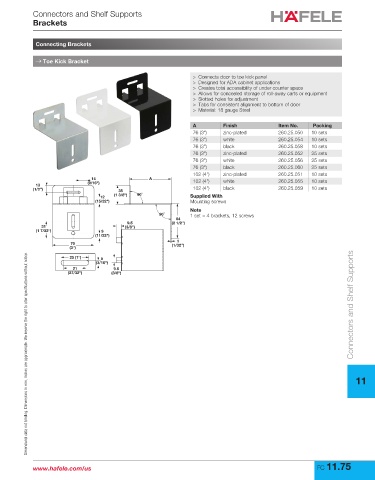

P. 1245
Connectors and Shelf Supports
Brackets
Connecting Brackets
→ Toe Kick Bracket
> Connects door to toe kick panel
> Designed for ADA cabinet applications
> Creates total accessibility of under counter space
> Allows for concealed storage of roll-away carts or equipment
> Slotted holes for adjustment
> Tabs for consistent alignment to bottom of door
> Material: 18 gauge Steel
A Finish Item No. Packing
76 (3") zinc-plated 260.25.050 10 sets
76 (3") white 260.25.054 10 sets
76 (3") black 260.25.058 10 sets
76 (3") zinc-plated 260.25.052 25 sets
76 (3") white 260.25.056 25 sets
76 (3") black 260.25.060 25 sets
102 (4") zinc-plated 260.25.051 10 sets
14 A
(9/16") 102 (4") white 260.25.055 10 sets
13
(1/2") 35 102 (4") black 260.25.059 10 sets
12 (1 3/8") 90˚ Supplied With
(15/32") Mounting screws
Note
90˚ 1 set = 4 brackets, 12 screws
64
9.5 (2 1/2")
31 (3/8")
(1 7/32") 9
(11/32")
1
76 (1/32")
(3")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
25 (1") 5
(3/16")
21 9.5
(27/32") (3/8") Connectors and Shelf Supports
11
www.hafele.com/us FC 11.75
