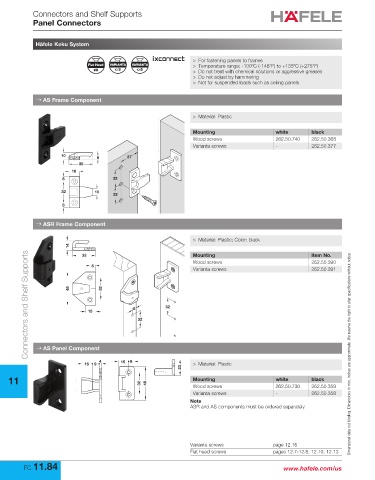

P. 1256
Connectors and Shelf Supports
Panel Connectors
Häfele Keku System
> For fastening panels to frames
Flat Head VARIANTA VARIANTA > Temperature range: -100ºC (-148°F) to +135ºC (+275°F)
#8 3 5 > Do not treat with chemical solutions or aggressive greases
> Do not adjust by hammering
> Not for suspended loads such as ceiling panels
→ AS Frame Component
> Material: Plastic
Mounting white black
Wood screws 262.50.740 262.50.368
Varianta screws - 262.50.377
10 6 37
36
16
8 32
32 10
32
8
→ ASR Frame Component
> Material: Plastic; Color: black
14
Connectors and Shelf Supports
33 Mounting Item No.
Wood screws 262.50.390
8
Varianta screws 262.50.391
48 32
8 32
15
32
→ AS Panel Component Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
4 15 8
16 9 > Material: Plastic
23
11
11 32 48 Mounting white black
262.50.359
Wood screws
262.50.730
Varianta screws - 262.50.358
Note
ASR and AS components must be ordered separately.
Varianta screws page 12.16
Flat head screws pages 12.7-12.8, 12.10, 12.13
FC 11.84 www.hafele.com/us
