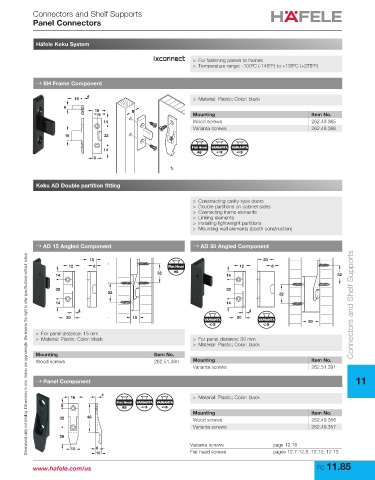

Connectors and Shelf Supports
Panel Connectors

Häfele Keku System

> For fastening panels to frames
> Temperature range: -100ºC (-148°F) to +135ºC (+275°F)

→ EH Frame Component

4
16 > Material: Plastic; Color: black
6
15
6 Mounting Item No.
14 Wood screws 262.49.365
Varianta screws 262.49.366
16 32

Flat Head VARIANTA VARIANTA
14
#8 3 5
8

Keku AD Double partition fitting

> Constructing cavity-type doors
> Double partitions on cabinet sides
> Connecting frame elements
> Linking elements
> Installing lightweight partitions
> Mounting wall elements (booth construction)

→ AD 15 Angled Component → AD 30 Angled Component
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
15 30
12 6 Flat Head 12 6
32 #8
14 14 32
32 32
32 32
14 14 Connectors and Shelf Supports
4 4
20 15 20
VARIANTA VARIANTA 30
3 5
> For panel distance: 15 mm
> Material: Plastic; Color: black > For panel distance: 30 mm
> Material: Plastic; Color: black
Mounting Item No.
Wood screws 262.51.380 Mounting Item No.
Varianta screws 262.51.391

→ Panel Component 11

4
16 > Material: Plastic; Color: black
Flat Head VARIANTA VARIANTA
8 #8 3 5
Mounting Item No.
32 48 Wood screws 262.49.356
Varianta screws 262.49.357
28
Varianta screws page 12.16
10 6
10 Flat head screws pages 12.7-12.8, 12.10, 12.13

www.hafele.com/us FC 11.85
