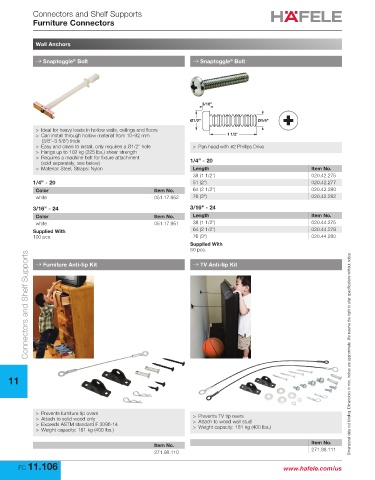

Page 1278 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Connectors and Shelf Supports
Furniture Connectors

Wall Anchors

→ Snaptoggle Bolt → Snaptoggle Bolt
®
®

3/16"

Ø1/2" Ø1/4"
> Ideal for heavy loads in hollow walls, ceilings and floors
> Can install through hollow material from 10–92 mm 1 1/2"
(3/8"–3 5/8") thick
> Easy and clean to install, only requires a Ø1/2" hole > Pan head with #2 Phillips Drive
> Hangs up to 102 kg (225 lbs.) shear strength
> Requires a machine bolt for fixture attachment 1/4" - 20
(sold separately, see below)
> Material: Steel; Straps: Nylon Length Item No.
38 (1 1/2") 020.42.275
1/4" - 20 51 (2") 020.42.277
Color Item No. 64 (2 1/2") 020.42.280
white 051.17.952 76 (3") 020.42.282
3/16" - 24 3/16" - 24
Color Item No. Length Item No.
white 051.17.951 38 (1 1/2") 020.44.275
Supplied With 64 (2 1/2") 020.44.278
100 pcs. 76 (3") 020.44.280
Supplied With
50 pcs.
Connectors and Shelf Supports
→ Furniture Anti-tip Kit → TV Anti-tip Kit

11 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

> Prevents furniture tip overs
> Attach to solid wood only > Prevents TV tip overs
> Exceeds ASTM standard F 3096-14 > Attach to wood wall stud
> Weight capacity: 181 kg (400 lbs.) > Weight capacity: 181 kg (400 lbs.)

Item No. Item No.
271.98.110 271.98.111
FC 11.106 www.hafele.com/us
