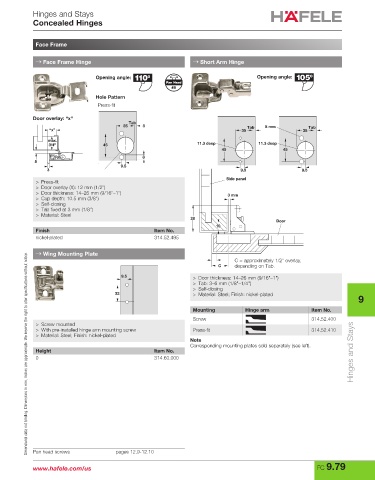

Hinges and Stays
Concealed Hinges

Face Frame

→ Face Frame Hinge → Short Arm Hinge

Opening angle: Opening angle:
Pan Head
#8
Hole Pattern
Press-fit

Door overlay: “x"
Tab Tab
35 3 35 3 Tab 8 mm Tab
“x” 35 35
max.
3/4" 45 45 11.3 deep 11.3 deep
45 45
8
5
9.5 9.5
3 9.5 9.5
depth 10.8 depth 10.8
Side panel
> Press-fit
> Door overlay (X): 12 mm (1/2")
> Door thickness: 14–26 mm (9/16"–1") 3 mm
> Cup depth: 10.5 mm (3/8")
> Self-closing
> Tab fixed at 3 mm (1/8")
> Material: Steel
28
Door
10
Finish Item No.
nickel-plated 314.52.495
→ Wing Mounting Plate
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
C = approximately 1/2" overlay,
C depending on Tab.
9.5 > Door thickness: 14–26 mm (9/16"–1")
> Tab: 3–6 mm (1/8"–1/4")
> Self-closing
32 > Material: Steel; Finish: nickel-plated
9

Mounting Hinge arm Item No.
Screw 314.52.400
> Screw mounted
> With pre-installed hinge arm mounting screw Press-fit 314.52.410
> Material: Steel; Finish: nickel-plated
Note
Corresponding mounting plates sold separately (see left).
Height Item No. Hinges and Stays
0 314.60.000

Pan head screws pages 12.9-12.10

www.hafele.com/us FC 9.79
