Hinges and Stays

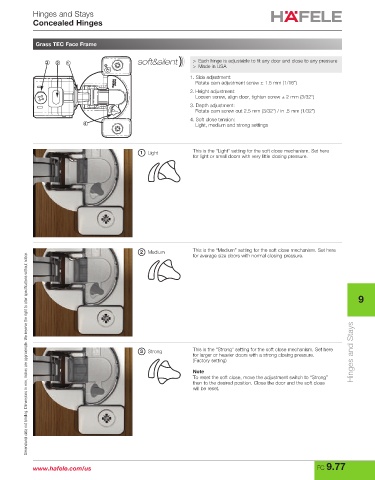

Concealed Hinges

Grass TEC Face Frame

3 2 1 > Each hinge is adjustable to fit any door and close to any pressure
> Made in USA
1. Side adjustment:
Rotate cam adjustment screw ± 1.5 mm (1/16")
2. Height adjustment:
Loosen screw, align door, tighten screw ± 2 mm (3/32")
3. Depth adjustment:
Rotate cam screw out 2.5 mm (3/32") / in .5 mm (1/32")
4. Soft close tension:
4 Light, medium and strong settings

1 Light This is the “Light” setting for the soft close mechanism. Set here
for light or small doors with very little closing pressure.

2 Medium This is the “Medium” setting for the soft close mechanism. Set here
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
for average size doors with normal closing pressure.

9

Hinges and Stays

3 Strong This is the “Strong” setting for the soft close mechanism. Set here
for larger or heavier doors with a strong closing pressure.
(Factory setting)
Note
To reset the soft close, move the adjustment switch to “Strong”
then to the desired position. Close the door and the soft close
will be reset.
