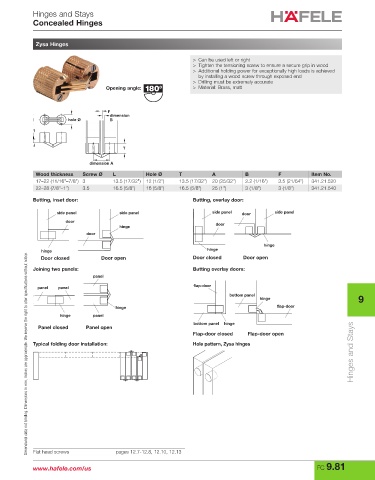

Hinges and Stays
Concealed Hinges

Zysa Hinges

> Can be used left or right
> Tighten the tensioning screw to ensure a secure grip in wood
> Additional holding power for exceptionally high loads is achieved
by installing a wood screw through exposed end
> Drilling must be extremely accurate
Opening angle: > Material: Brass, matt

F
dimension
hole Ø B

L
T

dimension A
Wood thickness Screw Ø L Hole Ø T A B F Item No.
17–22 (11/16"–7/8") 3 13.5 (17/32") 12 (1/2") 13.5 (17/32") 20 (25/32") 2.2 (1/16") 3.5 (21/64") 341.21.520
22–28 (7/8"–1") 3.5 16.5 (5/8") 16 (5/8") 16.5 (5/8") 25 (1") 3 (1/8") 3 (1/8") 341.21.540
Butting, inset door: Butting, overlay door:

side panel side panel side panel door side panel
door
hinge door
door

hinge
hinge hinge
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Door closed Door open Door closed Door open
Joining two panels: Butting overlay doors:
panel
panel panel flap-door
bottom panel
hinge 9
hinge flap-door
hinge panel
bottom panel hinge
Hinges and Stays
Panel closed Panel open
Flap-door closed Flap-door open
Typical folding door installation: Hole pattern, Zysa hinges

Flat head screws pages 12.7-12.8, 12.10, 12.13
