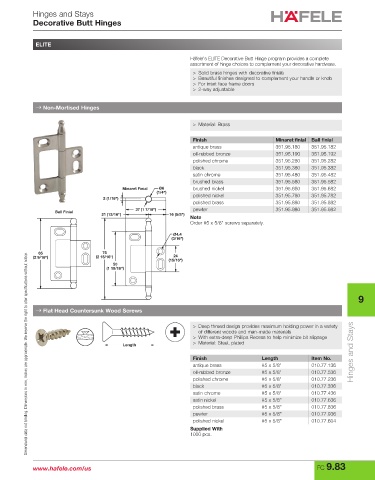

Page 901 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Hinges and Stays
Decorative Butt Hinges

ELITE

Häfele’s ELITE Decorative Butt Hinge program provides a complete
assortment of hinge choices to complement your decorative hardware.
> Solid brass hinges with decorative finials
> Beautiful finishes designed to complement your handle or knob
> For inset face frame doors
> 2-way adjustable

→ Non-Mortised Hinges

> Material: Brass

Finish Minaret finial Ball finial
antique brass 351.95.180 351.95.182
oil-rubbed bronze 351.95.190 351.95.192
polished chrome 351.95.280 351.95.282
black 351.95.380 351.95.382
satin chrome 351.95.480 351.95.482
brushed brass 351.95.580 351.95.582
Minaret Finial Ø6 brushed nickel 351.95.680 351.95.682
(1/4")
2 (1/16") polished nickel 351.95.780 351.95.782
polished brass 351.95.880 351.95.882
37 (1 7/16") pewter 351.95.980 351.95.982
Ball Finial
21 (13/16") 16 (5/8")
Note
Order #5 x 5/8" screws separately.
Ø4.4
(3/16")

65 75
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(2 9/16") (2 15/16") 24
(15/16")
50
(1 15/16")

9

→ Flat Head Countersunk Wood Screws

> Deep thread design provides maximum holding power in a variety
of different woods and man-made materials
> With extra-deep Phillips Recess to help minimize bit slippage
Length > Material: Steel, plated
Finish Length Item No. Hinges and Stays
antique brass #5 x 5/8" 010.77.136
oil-rubbed bronze #5 x 5/8" 010.77.536
polished chrome #5 x 5/8" 010.77.236
black #5 x 5/8" 010.77.336
satin chrome #5 x 5/8" 010.77.436
satin nickel #5 x 5/8" 010.77.636
polished brass #5 x 5/8" 010.77.836
pewter #5 x 5/8" 010.77.936
polished nickel #5 x 5/8" 010.77.604
Supplied With
1000 pcs.

www.hafele.com/us FC 9.83
