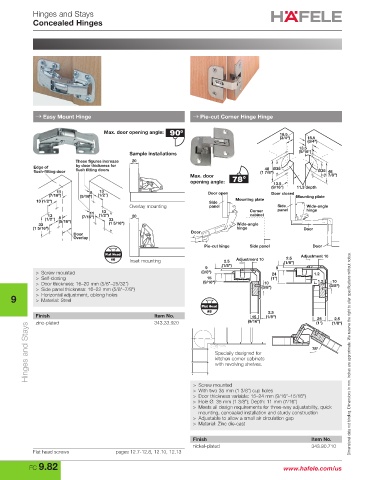

Hinges and Stays
Concealed Hinges

→ Easy Mount Hinge → Pie-cut Corner Hinge Hinge

Max. door opening angle: 18.5
(3/4") 18.5
(3/4")
13.5
Sample installations (9/16")
These figures increase 20
Edge of by door thickness for 48 Ø35
flush-fitting door flush fitting doors (1 7/8") Ø35 48
Max. door (1 7/8")
opening angle: 13.5
(9/16") 11.3 depth
11 8 13 Door open
(7/16") (5/16") (1/2") Door closed Mounting plate
13 (1/2") Side Mounting plate
Overlay mounting panel Side Wide-angle
panel
11 13 Corner hinge
13 (7/16") (1/2") 20 cabinet
(1/2") 8 (5/16") 33
33 (1 5/16") Wide-angle
(1 5/16") hinge Door
Door Door
Overlay
Pie-cut hinge Side panel Door
Flat Head Adjustment 10
2.5
#6 Inset mounting 2.5 Adjustment 10 (1/8")
(1/8")
9 9
> Screw mounted (3/8") 24 1.2
> Self-closing 15 (1")
10
> Door thickness: 16–20 mm (5/8"–25/32") (9/16") 10 1.2 (3/8")
> Side panel thickness: 16–22 mm (5/8"–7/8") (3/8")
9 > Horizontal adjustment, oblong holes
> Material: Steel
Flat Head
#8 2.5
Finish Item No. (9/16") (1/8") (1") (1/8")
15
2.5
24
343.33.920
zinc-plated
Hinges and Stays Specially designed for 78º Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
kitchen corner cabinets
with revolving shelves.

> Screw mounted
> With two 35 mm (1 3/8") cup holes
> Door thickness variable: 15–24 mm (9/16"–15/16")
> Hole Ø: 35 mm (1 3/8"); Depth: 11 mm (7/16")
> Meets all design requirements for three-way adjustability, quick
mounting, concealed installation and sturdy construction
> Adjustable to allow a small air circulation gap
> Material: Zinc die-cast

Finish Item No.
nickel-plated 343.90.710
Flat head screws pages 12.7-12.8, 12.10, 12.13
