Hinges and Stays
Concealed Hinges

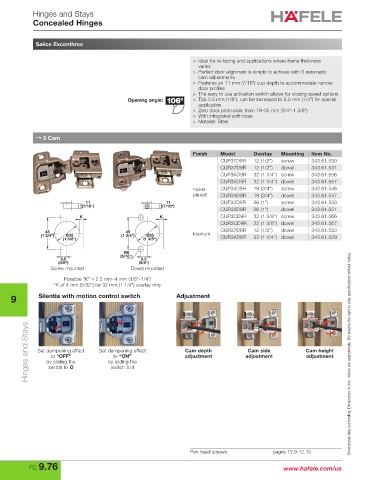

Salice Excenthree

> Ideal for re-facing and applications where frame thickness
varies
> Perfect door alignment is simple to achieve with 3 automatic
cam adjustments
> Features an 11 mm (7/16") cup depth to accommodate narrow
door profiles
> The easy to use activation switch allows for closing speed options
Opening angle: > Tab 2.5 mm (1/8"); can be increased to 5.5 mm (1/4") for special
application
> Zero door protrusion: from 19–35 mm (3/4"–1 3/8")
> With integrated soft close
> Material: Steel

→ 3 Cam

Finish Model Overlay Mounting Item No.
CUP37D9R 12 (1/2") screw 343.61.530
CUR37D9R 12 (1/2") dowel 343.61.531
CUP3AD9R 32 (1 1/4") screw 343.61.556
CUR3AD9R 32 (1 1/4") dowel 343.61.557
nickel- CUP34D9R 19 (3/4") screw 343.61.546
plated CUR34D9R 19 (3/4") dowel 343.61.547
11 11 CUP32D9R 26 (1") screw 343.61.550
(7/16") (7/16")
CUR32D9R 26 (1") dowel 343.61.551
K K CUP3CD9R 32 (1 3/8") screw 343.61.566
CUR3CD9R 32 (1 3/8") dowel 343.61.567
45 45 CUR37D6R 12 (1/2") dowel 343.61.533
(1 3/4") Ø35 (1 3/4") Ø35 titanium CUR3AD6R 32 (1 1/4") dowel 343.61.559
(1 3/8") (1 3/8")
Ø8
(5/16")
9.5 9.5
(3/8") (3/8")
Screw mounted Dowel mounted
Possible “K” = 2.5 mm–4 mm (1/8"–1/4")
*K of 4 mm (5/32") for 32 mm (1 1/4") overlay only
9 Silentia with motion control switch Adjustment

Hinges and Stays Set dampening effect Set dampening effect Cam depth adjustment Cam height Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Cam side
adjustment
to “OFF”
to “ON”
adjustment
by sliding the
by sliding the
switch to I
switch to O

Pan head screws pages 12.9-12.10
