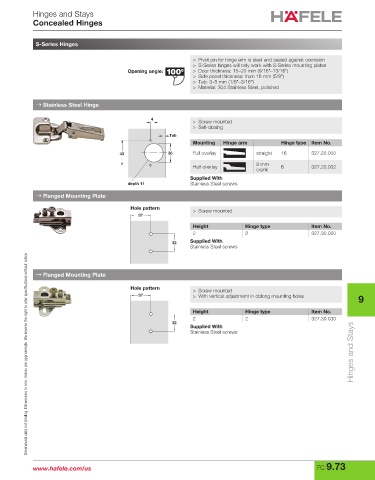

Hinges and Stays
Concealed Hinges
S-Series Hinges
> Pivot pin for hinge arm is steel and sealed against corrosion
> S-Series hinges will only work with S-Series mounting plates
Opening angle: > Door thickness: 15–20 mm (9/16"–13/16")
> Side panel thickness: from 16 mm (5/8")
> Tab: 3–5 mm (1/8"–3/16")
> Material: 304 Stainless Steel, polished
→ Stainless Steel Hinge
4 > Screw mounted
> Self-closing
Tab
Mounting Hinge arm Hinge type Item No.
43 35 Full overlay straight 16 327.20.000
9 mm
Half overlay 6 327.20.002
crank
Supplied With
depth 11 Stainless Steel screws
→ Flanged Mounting Plate
Hole pattern > Screw mounted
37
Height Hinge type Item No.
2 2 327.30.000
32 Supplied With
Stainless Steel screws
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
→ Flanged Mounting Plate
Hole pattern > Screw mounted
37 > With vertical adjustment in oblong mounting holes 9
Height Hinge type Item No.
2 2 327.30.030
32
Hinges and Stays
Supplied With
Stainless Steel screws
