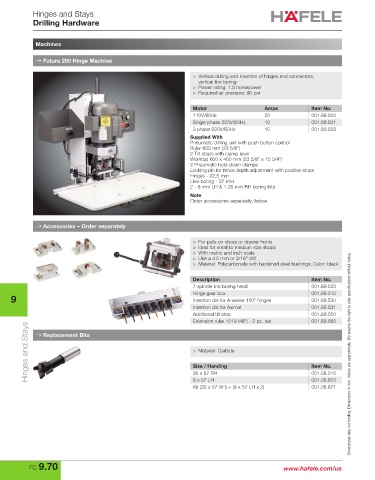

Hinges and Stays
Drilling Hardware

Machines

→ Futura 250 Hinge Machine

> Vertical drilling and insertion of hinges and connectors,
vertical line boring
> Power rating: 1.5 horsepower
> Required air pressure: 90 psi

Motor Amps Item No.
110V/60Hz 20 001.89.500
Single phase 220V/60Hz 10 001.89.501
3 phase 220V/60Hz 10 001.89.503
Supplied With
Pneumatic drilling unit with push button control
Ruler 600 mm (23 5/8")
2 Tilt stops with clamp lever
Worktop 600 x 400 mm (23 5/8" x 15 3/4")
2 Pneumatic hold-down clamps
Locking pin for fence depth adjustment with positive stops
Hinges - 22.5 mm
Line-boring - 37 mm
2 - 8 mm LH & 1 35 mm RH boring bits
Note
Order accessories separately, below.

→ Accessories – Order separately

> For pulls on doors or drawer fronts
> Ideal for small to medium size shops
> With metric and inch scale
> Use a 4.5 mm or 3/16" drill
> Material: Polycarbonate with hardened steel bushings; Color: black

Description Item No.
7 spindle line boring head 001.89.520
Hinge gear box 001.89.510
9 Insertion die for A-series 110° hinges 001.89.530
Insertion die for Aximat 001.89.531
Additional tilt stop 001.89.550
Extension ruler 1219 (48") - 2 pc. set 001.89.560
Hinges and Stays > Material: Carbide Item No. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
→ Replacement Bits

Size / Handing
35 x 57 RH
001.06.870
8 x 57 LH
001.06.871
Kit (35 x 57 RH) + (8 x 57 LH x 2) 001.08.013

FC 9.70 www.hafele.com/us
