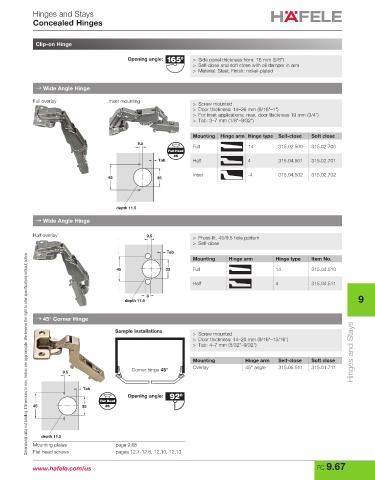

Hinges and Stays
Concealed Hinges

Clip-on Hinge

Opening angle: > Side panel thickness from: 16 mm (5/8")
> Self-close and soft close with oil damper in arm
> Material: Steel; Finish: nickel-plated

→ Wide Angle Hinge

Full overlay Inset mounting > Screw mounted
> Door thickness: 14–26 mm (9/16"–1")
> For inset applications: max. door thickness 19 mm (3/4")
> Tab: 3–7 mm (1/8"–9/32")

Mounting Hinge arm Hinge type Self-close Soft close
9.5
Full 14 315.02.500 315.02.700
Flat Head
#6
Tab Half 4 315.04.501 315.02.701
Inset -4 315.04.502 315.02.702
45 35
35

depth 11.5
→ Wide Angle Hinge

Half overlay 9.5 > Press-fit, 45/9.5 hole pattern
> Self-close
Tab
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Mounting Hinge arm Hinge type Item No.
35
45 35 Full 14 315.04.510
Half 4 315.04.511

8
depth 11.5 9

→ 45° Corner Hinge

Sample installations
> Screw mounted
> Door thickness: 14–20 mm (9/16"–13/16")
> Tab: 4–7 mm (5/32"–9/32")

Mounting Hinge arm Self-close Soft close Hinges and Stays
Corner hinge 45° Overlay 45° angle 315.05.511 315.01.711
9.5

Tab
Opening angle:
Flat Head
45 35 #6
35

depth 11.5
Mounting plates page 9.68
Flat head screws pages 12.7-12.8, 12.10, 12.13
