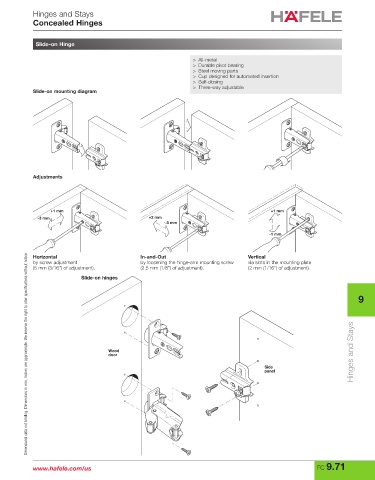

P. 889
Hinges and Stays
Concealed Hinges
Slide-on Hinge
> All-metal
> Durable pivot bearing
> Steel moving parts
> Cup designed for automated insertion
> Self-closing
> Three-way adjustable
Slide-on mounting diagram
Adjustments
+1 mm +1 mm
-3 mm +2 mm
-.5 mm
-1 mm
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Horizontal In-and-Out Vertical
by screw adjustment by loosening the hinge-arm mounting screw via slots in the mounting plate
(5 mm (3/16") of adjustment). (2.5 mm (1/8") of adjustment). (2 mm (1/16") of adjustment).
Slide-on hinges
9
Hinges and Stays
Wood
door
Side
panel
www.hafele.com/us FC 9.71
