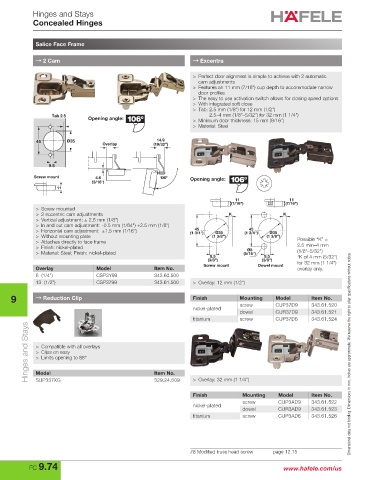

Page 892 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Hinges and Stays
Concealed Hinges

Salice Face Frame

→ 2 Cam → Excentra

> Perfect door alignment is simple to achieve with 2 automatic
cam adjustments
Screw mount Press-fit > Features an 11 mm (7/16") cup depth to accommodate narrow
door profiles
11 11 > The easy to use activation switch allows for closing speed options
> With integrated soft close
Ø8 > Tab: 2.5 mm (1/8") for 12 mm (1/2")
Tab 2.5 Tab 2.5 2.5–4 mm (1/8"–5/32") for 32 mm (1 1/4")
Opening angle: > Minimum door thickness: 15 mm (9/16")
> Material: Steel

45 Ø35 45 Ø35 14.9
Overlay (19/32")

Ø8
9.5 9.5

Screw mount Press-fit 4.6 106º Opening angle:
(3/16")
11 11
Length
Ø8 11 11
Tab 2.5 Tab 2.5 (7/16") (7/16")
> Screw mounted
> 2 eccentric cam adjustments K K
> Vertical adjustment: ± 2.5 mm (1/8")
> In and out cam adjustment: -0.5 mm (1/64") +2.5 mm (1/8")
45 Ø35 45 Ø35 45 45
> Horizontal cam adjustment: ±1.5 mm (1/16") (1 3/4") Ø35 (1 3/4") Ø35
> Without mounting plate (1 3/8") (1 3/8") Possible “K” =
> Attaches directly to face frame
Ø8
> Finish: nickel-plated 9.5 Ø8 2.5 mm–4 mm
9.5
> Material: Steel; Finish: nickel-plated (5/16") (1/8"–5/32")
9.5 9.5 *K of 4 mm (5/32")
(3/8") (3/8")
Screw mount Dowel mount for 32 mm (1 1/4")
Overlay Model Item No. overlay only.
6 (1/4") CSP3Y99 343.60.500
13 (1/2") CSP3799 343.61.500 > Overlay: 12 mm (1/2")
9 → Reduction Clip Finish Mounting Model Item No.
nickel-plated screw CUP37D9 343.61.520
dowel CUR37D9 343.61.521
titanium screw CUP37D6 343.61.524
Hinges and Stays > Compatible with all overlays Item No. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

> Clips on easy
> Limits opening to 86°

Model
> Overlay: 32 mm (1 1/4")
SUP337XG
329.24.509
Finish Mounting Model Item No.
screw CUP3AD9 343.61.522
nickel-plated
dowel CUR3AD9 343.61.523
titanium screw CUP3AD6 343.61.526

#8 Modified truss head screw page 12.15
