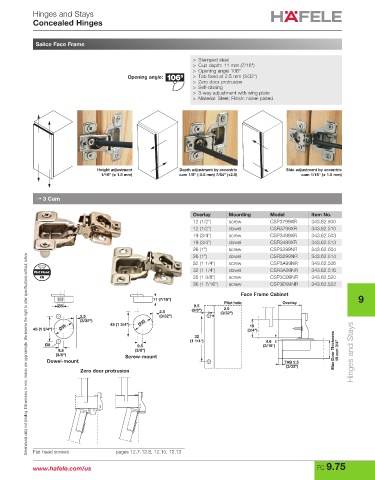

Page 893 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Hinges and Stays
Concealed Hinges

Salice Face Frame

> Stamped steel
> Cup depth: 11 mm (7/16")
> Opening angle 106º
Opening angle: > Tab fixed at 2.5 mm (3/32")
> Zero door protrusion
> Self-closing
> 3-way adjustment with wing plate
> Material: Steel; Finish: nickel-plated

Height adjustment Depth adjustment by eccentric Side adjustment by eccentric
1/16" (± 1.5 mm) cam 1/8" (-0.5 mm) 7/64" (+2.5) cam 1/16" (± 1.5 mm)

→ 3 Cam

Overlay Mounting Model Item No.
12 (1/2") screw CSP3799XR 343.62.500
12 (1/2") dowel CSR3799XR 343.62.510
19 (3/4") screw CSP3499XR 343.62.503
19 (3/4") dowel CSR3499XR 343.62.513
26 (1") screw CSP3299NR 343.62.504
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
26 (1") dowel CSR3299NR 343.62.514
32 (1 1/4") screw CSP3A99NR 343.62.506
32 (1 1/4") dowel CSR3A99NR 343.62.516
Flat Head
#6 35 (1 3/8") screw CSP3C99NR 343.62.520
36 (1 7/16") screw CSP3D99NR 343.62.522
Face Frame Cabinet
11 (7/16") 9
Pilot hole
Ø8 9.5 2.5 Overlay
2.5 (3/8") (3/32")
2.5 (3/32")
(3/32") Ø35
19
45 (1 3/4") Ø35 45 (1 3/4") (3/4")
32
(1 1/4") 4.6
Ø8 9.5 (3/16")
9.5 (3/8") Max Door Thickness 19 mm 3/4"
(3/8") Screw-mount Hinges and Stays
Dowel-mount TAB 2.5
(3/32")
Zero door protrusion

Flat head screws pages 12.7-12.8, 12.10, 12.13

www.hafele.com/us FC 9.75
