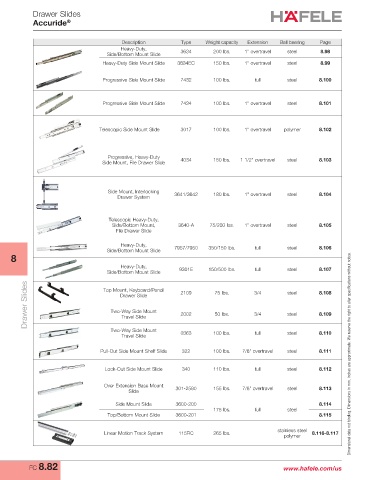

Drawer Slides
Accuride ®

Description Type Weight capacity Extension Ball bearing Page
Heavy-Duty,
Side/Bottom Mount Slide 3634 200 lbs. 1" overtravel steel 8.98
Heavy-Duty Side Mount Slide 3634EC 150 lbs. 1" overtravel steel 8.99

Progressive Side Mount Slide 7432 100 lbs. full steel 8.100

Progressive Side Mount Slide 7434 100 lbs. 1" overtravel steel 8.101

Telescopic Side Mount Slide 3017 100 lbs. 1" overtravel polymer 8.102

Progressive, Heavy-Duty
Side Mount, File Drawer Slide 4034 150 lbs. 1 1/2" overtravel steel 8.103

Side Mount, Interlocking
Drawer System 3641/3642 180 lbs. 1" overtravel steel 8.104

Telescopic Heavy-Duty,
Side/Bottom Mount, 3640-A 75/200 lbs. 1" overtravel steel 8.105
File Drawer Slide

Heavy-Duty, 7957/7950 350/150 lbs. full steel 8.106
Side/Bottom Mount Slide
8
Heavy-Duty, 9301E 150/500 lbs. full steel 8.107
Side/Bottom Mount Slide
Drawer Slides Top Mount, Keyboard/Pencil 2109 75 lbs. 3/4 steel 8.108

Drawer Slide

Two-Way Side Mount
50 lbs.
2002
3/4
8.109
steel
Travel Slide
Two-Way Side Mount 0363 100 lbs. full steel 8.110
Travel Slide
Pull-Out Side Mount Shelf Slide 322 100 lbs. 7/8" overtravel steel 8.111 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Lock-Out Side Mount Slide 340 110 lbs. full steel 8.112

Over Extension Base Mount 8.113
Slide 301-2590 155 lbs. 7/8" overtravel steel

Side Mount Slide 3600-200 8.114
175 lbs. full steel
Top/Bottom Mount Slide 3600-201 8.115

stainless steel
Linear Motion Track System 115RC 265 lbs. 8.116-8.117
polymer

FC 8.82 www.hafele.com/us
