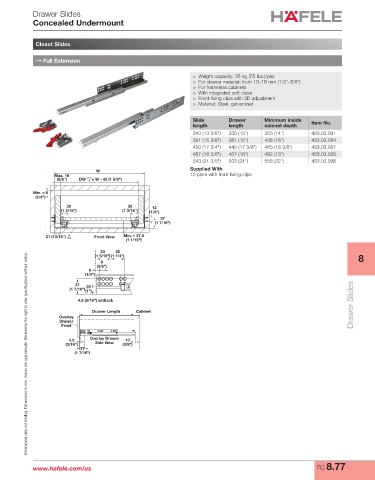

Drawer Slides
Concealed Undermount

Closet Slides

→ Full Extension

> Weight capacity: 35 kg (75 lbs.)/pair
> For drawer material: from 13–16 mm (1/2"–5/8")
> For frameless cabinets
> With integrated soft close
> Front fixing clips with 3D adjustment
> Material: Steel, galvanized

Slide Drawer Minimum inside Item No.
length length cabinet depth
340 (13 3/8") 330 (13") 355 (14") 433.03.081
391 (15 3/8") 381 (15") 406 (16") 433.03.084
450 (17 3/4") 440 (17 3/8") 465 (18 3/8") 433.03.087
467 (18 3/8") 457 (18") 482 (19") 433.03.088
543 (21 3/8") 533 (21") 558 (22") 433.03.096
Supplied With
W
Max. 16 10 pairs with front fixing clips
+1.5
(5/8") DW -0 = W - 42 (1 5/8")
Min. = 6
(1/4")
30 30 12
(1 3/16") (1 3/16") (1/2")
37
(1 7/16")

+0 Min. = 27.5
21 (13/16") -0.8 Front View
(1 1/16")
33 32
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(1 5/16") (1 1/4") 8
9
(3/8")
6
(1/4")
37 25
(1 7/16") (1")
4.5 (3/16") setback Drawer Slides
Drawer Length Cabinet
Overlay
Drawer
Front

4.5 Overlay Drawer 10
(3/16") Side View (3/8")
37
(1 7/16")

www.hafele.com/us FC 8.77
