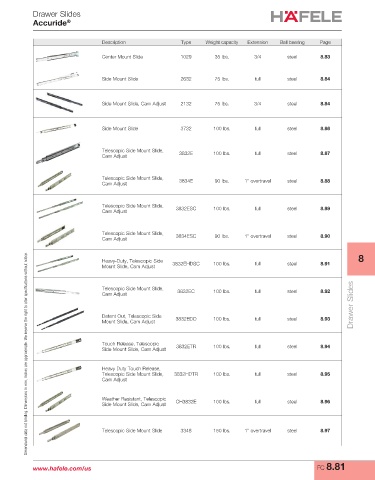

Drawer Slides
Accuride ®

Description Type Weight capacity Extension Ball bearing Page

Center Mount Slide 1029 35 lbs. 3/4 steel 8.83

Side Mount Slide 2632 75 lbs. full steel 8.84

Side Mount Slide, Cam Adjust 2132 75 lbs. 3/4 steel 8.84

Side Mount Slide 3732 100 lbs. full steel 8.86

Telescopic Side Mount Slide, 3832E 100 lbs. full steel 8.87
Cam Adjust

Telescopic Side Mount Slide, 3834E 90 lbs. 1" overtravel steel 8.88
Cam Adjust

Telescopic Side Mount Slide, 3832ESC 100 lbs. full steel 8.89
Cam Adjust

Telescopic Side Mount Slide, 3834ESC 90 lbs. 1" overtravel steel 8.90
Cam Adjust

Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
8
Heavy-Duty, Telescopic Side 3832EHDSC 100 lbs. full steel 8.91
Mount Slide, Cam Adjust

Drawer Slides
Telescopic Side Mount Slide, 3832EC 100 lbs. full steel 8.92
Cam Adjust

Detent Out, Telescopic Side 3832EDO 100 lbs. full steel 8.93
Mount Slide, Cam Adjust

Touch Release, Telescopic 3832ETR 100 lbs. full steel 8.94
Side Mount Slide, Cam Adjust

Heavy Duty Touch Release,
Telescopic Side Mount Slide, 3832HDTR 100 lbs. full steel 8.95
Cam Adjust

Weather Resistant, Telescopic CH3832E 100 lbs. full steel 8.96
Side Mount Slide, Cam Adjust

Telescopic Side Mount Slide 3348 150 lbs. 1" overtravel steel 8.97

www.hafele.com/us FC 8.81
