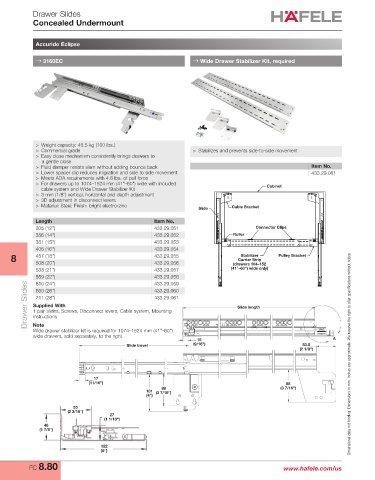

P. 756
Drawer Slides
Concealed Undermount
Accuride Eclipse
→ 3160EC → Wide Drawer Stabilizer Kit, required
> Weight capacity: 45.5 kg (100 lbs.)
> Commercial grade > Stabilizes and prevents side-to-side movement
> Easy close mechanism consistently brings drawers to
a gentle close
> Fluid damper resists slam without adding bounce back Item No.
> Lower spacer clip reduces migration and side to side movement 433.29.081
> Meets ADA requirements with 4.8 lbs. of pull force
> For drawers up to 1074–1524 mm (41"–60") wide with included
cable system and Wide Drawer Stabilizer Kit Cabinet
> 3 mm (1/8") vertical, horizontal and depth adjustment
> 3D adjustment in disconnect levers
> Material: Steel; Finish: bright electro-zinc
Slide Cable Bracket
Length Item No.
305 (12") 433.29.051 Connector Clips
356 (14") 433.29.052 Roller
381 (15") 433.29.053
406 (16") 433.29.054
8 457 (18") 433.29.055 Carrier Strip Pulley Bracket
Stabilizer
508 (20") 433.29.056 (drawers 104–152
533 (21") 433.29.057 (41"–60") wide only)
559 (22") 433.29.058
610 (24")
Drawer Slides Supplied With 433.29.061 Slide length
433.29.059
433.29.060
660 (26")
711 (28")
1 pair slides, Screws, Disconnect levers, Cable system, Mounting
instructions
Note
Wide drawer stabilizer kit is required for 1074–1524 mm (41"–60")
wide drawers, sold separately, to the right.
15 A
Slide travel (9/16") 53.5
(2 1/8") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
17
(11/16") 88
88 (3 7/16")
101 (3 7/16")
(3 7/16")
(4")
(4")
55
55
(2 3/16")
27
(1 1/16")
48
(1 7/8")
152
(6")
FC 8.80 www.hafele.com/us
