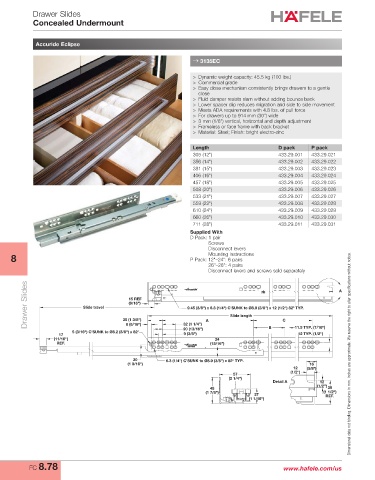

Drawer Slides
Concealed Undermount

Accuride Eclipse

→ 3135EC

> Dynamic weight capacity: 45.5 kg (100 lbs.)
> Commercial grade
> Easy close mechanism consistently brings drawers to a gentle
close
> Fluid damper resists slam without adding bounce back
> Lower spacer clip reduces migration and side to side movement
> Meets ADA requirements with 4.8 lbs. of pull force
> For drawers up to 914 mm (30") wide
> 3 mm (1/8") vertical, horizontal and depth adjustment
> Frameless or face frame with back bracket
> Material: Steel; Finish: bright electro-zinc

Length D pack P pack
305 (12") 433.29.001 433.29.021
356 (14") 433.29.002 433.29.022
381 (15") 433.29.003 433.29.023
406 (16") 433.29.004 433.29.024
457 (18") 433.29.005 433.29.025
508 (20") 433.29.006 433.29.026
533 (21") 433.29.007 433.29.027
559 (22") 433.29.008 433.29.028
610 (24") 433.29.009 433.29.029
660 (26") 433.29.010 433.29.030
711 (28") 433.29.011 433.29.031
Supplied With
D Pack: 1 pair
Screws
Disconnect levers
8 Mounting instructions
P Pack: 12"–24": 6 pairs
26"–28": 4 pairs
Disconnect levers and screws sold separately
Drawer Slides Slide travel 15 REF 9.45 (3/8") x 6.3 (1/4") C’SUNK to Ø8.9 (3/8") x 12 (1/2") 82º TYP. A
‡
(9/16")

Slide length
35 (1 3/8")
8 (5/16")
20 (13/16")
5 (3/16") C’SUNK to Ø8.2 (3/8") x 82° 32 (1 1/4") A B C 11.5 TYP. (7/16")
17 9 (3/8") 12 TYP. (1/2")
(11/16") 24
REF. (15/16")
30 6.3 (1/4") C’SUNK to Ø8.9 (3/8") x 82° TYP. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(1 3/16") 16
12 (5/8")
57 (1/2")
(2 1/4")
Detail A 12
48 (1/2") 39
(1 7/8") 27 (1 1/2")
(1 1/16") REF.

FC 8.78 www.hafele.com/us
