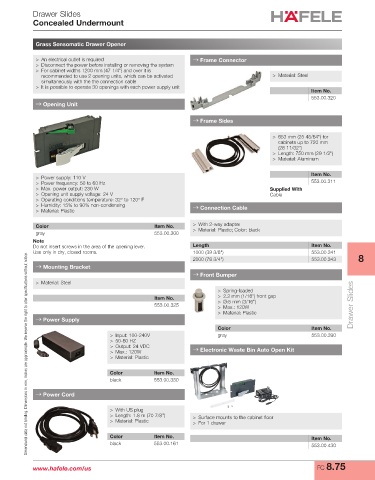

P. 749
Drawer Slides
Concealed Undermount
Grass Sensomatic Drawer Opener
> An electrical outlet is required → Frame Connector
> Disconnect the power before installing or removing the system
> For cabinet widths 1200 mm (47 1/4") and over it is
recommended to use 2 opening units, which can be activated > Material: Steel
simultaneously with the the connection cable
> It is possible to operate 30 openings with each power supply unit
Item No.
553.00.320
→ Opening Unit
→ Frame Sides
> 653 mm (25 45/64") for
cabinets up to 720 mm
(28 11/32")
> Length: 750 mm (29 1/2")
> Material: Aluminum
Item No.
> Power supply: 110 V
> Power frequency: 50 to 60 Hz 553.00.311
> Max. power output: 230 W Supplied With
> Opening unit supply voltage: 24 V Cable
> Operating conditions temperature: 32° to 120° F
> Humidity: 15% to 90% non-condensing → Connection Cable
> Material: Plastic
Color Item No. > With 2-way adapter
gray 553.00.300 > Material: Plastic; Color: black
Note
Do not insert screws in the area of the opening lever. Length Item No.
Use only in dry, closed rooms. 1000 (39 3/8") 553.00.341
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
2000 (78 3/4") 553.00.343 8
→ Mounting Bracket
→ Front Bumper
> Material: Steel
> Spring-loaded
Item No. > 2.2 mm (1/16") front gap
> Ø:5 mm (3/16")
553.00.325 > Max.: 120W Drawer Slides
> Material: Plastic
→ Power Supply
Color Item No.
> Input: 100-240V gray 553.00.390
> 50-60 HZ
> Output: 24 VDC
> Max.: 120W → Electronic Waste Bin Auto Open Kit
> Material: Plastic
Color Item No.
black 553.00.330
→ Power Cord
> With US plug
> Length: 1.8 m (70 7/8") > Surface mounts to the cabinet floor
> Material: Plastic > For 1 drawer
Color Item No. Item No.
black 553.00.161 553.00.430
www.hafele.com/us FC 8.75
