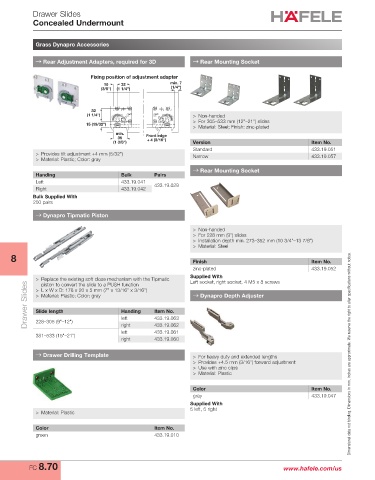

Page 744 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Drawer Slides
Concealed Undermount

Grass Dynapro Accessories

→ Rear Adjustment Adapters, required for 3D → Rear Mounting Socket

Fixing position of adjustment adapter
10 32 min. 7
(3/8") (1 1/4") (1/4")

32
(1 1/4") > Non-handed
> For 305–533 mm (12"–21") slides
15 (19/32")
> Material: Steel; Finish: zinc-plated
min. Front edge
35 + 4 (3/16")
(1 3/8") Version Item No.
Standard 433.19.051
> Provides tilt adjustment +4 mm (5/32") Narrow 433.19.057
> Material: Plastic; Color: gray
→ Rear Mounting Socket
Handing Bulk Pairs
Left 433.19.041 433.19.029
Right 433.19.042
Bulk Supplied With
200 pairs
→ Dynapro Tipmatic Piston

> Non-handed
> For 228 mm (9") slides
> Installation depth min. 273–352 mm (10 3/4"–13 7/8")
> Material: Steel
8 Finish Item No.
zinc-plated 433.19.052
> Replace the existing soft close mechanism with the Tipmatic Supplied With
Left socket, right socket, 4 M5 x 8 screws
Drawer Slides > Material: Plastic; Color: gray Handing Item No. → Dynapro Depth Adjuster
piston to convert the slide to a PUSH function
> L x W x D: 178 x 20 x 5 mm (7" x 13/16" x 3/16")

Slide length
433.19.063
left
228–305 (9"–12")
right
left 433.19.062
433.19.061
381–533 (15"–21")
right 433.19.060
→ Drawer Drilling Template > For heavy duty and extended lengths Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Provides +4.5 mm (3/16") forward adjustment
> Use with zinc clips
> Material: Plastic

Color Item No.
gray 433.19.047
Supplied With
5 left, 5 right
> Material: Plastic

Color Item No.
green 433.19.010

FC 8.70 www.hafele.com/us
