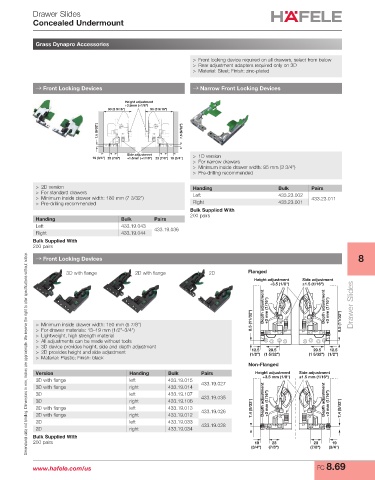

Page 743 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Drawer Slides
Concealed Undermount

Grass Dynapro Accessories

> Front locking device required on all drawers, select from below
> Rear adjustment adapters required only on 3D
> Material: Steel; Finish: zinc-plated

→ Front Locking Devices → Narrow Front Locking Devices

Height adjustment
+3.5mm (+1/8")
90 (3 9/16") 90 (3 9/16")

7.5 (9/32") 7.5 (9/32")

Side adjustment
19 (3/4") 23 (7/8") +1.5mm (+1/16") 23 (7/8") 19 (3/4") > 1D version
> For narrow drawers
> Minimum inside drawer width: 95 mm (3 3/4")
> Pre-drilling recommended

> 2D version Handing Bulk Pairs
> For standard drawers Left 433.23.002
> Minimum inside drawer width: 180 mm (7 3/32") 433.23.011
> Pre-drilling recommended Right 433.23.001
Bulk Supplied With
200 pairs
Handing Bulk Pairs
Left 433.19.043 433.19.036
Right 433.19.044
Bulk Supplied With
200 pairs
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
→ Front Locking Devices 8

3D with flange 2D with flange 2D Flanged
Height adjustment Side adjustment
+3.5 (1/8") ±1.5 (1/16")
Depth adjustment +3 mm (1/16") Depth adjustment +3 mm (1/16") Drawer Slides

8.5 (11/32") 8.5 (11/32")

> Minimum inside drawer width: 150 mm (5 7/8")
> For drawer materials: 13–19 mm (1/2"–3/4")
> Lightweight, high strength material
> All adjustments can be made without tools
> 3D device provides height, side and depth adjustment
29.5
12.5
12.5
29.5
> 2D provides height and side adjustment (1/2") (1 5/32") (1 5/32") (1/2")
> Material: Plastic; Finish: black
Non-Flanged
Version Handing Bulk Pairs Height adjustment Side adjustment
3D with flange left 433.19.015 +3.5 mm (1/8") ±1.5 mm (1/16")
3D with flange right 433.19.014 433.19.027
3D left 433.19.107 433.19.035
3D right 433.19.106 Depth adjustment +3 mm (1/16") Depth adjustment +3 mm (1/16")
2D with flange left 433.19.013 433.19.026 7.4 (9/32") 7.4 (9/32")
2D with flange right 433.19.012
2D left 433.19.033
2D right 433.19.034 433.19.028
Bulk Supplied With
200 pairs 19 23 23 19
(3/4") (7/8") (7/8") (3/4")

www.hafele.com/us FC 8.69
