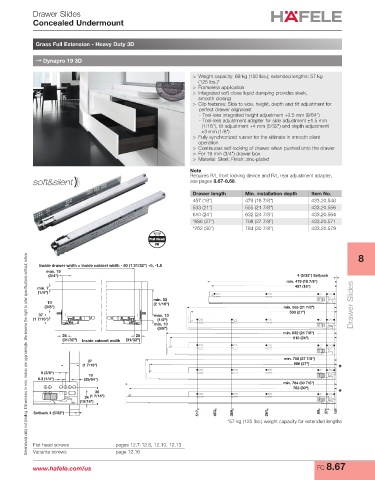

Drawer Slides
Concealed Undermount

Grass Full Extension - Heavy Duty 3D

→ Dynapro 19 3D

> Weight capacity: 68 kg (150 lbs.); extended lengths: 57 kg
(125 lbs.)*
> Frameless application
> Integrated soft close liquid damping provides sleek,
smooth closing
> Clip features: Side to side, height, depth and tilt adjustment for
perfect drawer alignment
- Tool-less integrated height adjustment +3.5 mm (9/64")
- Tool-less adjustment adapter for side adjustment ±1.5 mm
(1/16"), tilt adjustment +4 mm (5/32") and depth adjustment
+3 mm (1/8")
> Fully synchronized runner for the ultimate in smooth silent
operation
> Continuous self-locking of drawer when pushed onto the drawer
> For 19 mm (3/4") drawer box
> Material: Steel; Finish: zinc-plated
Note
Requires R/L front locking device and R/L rear adjustment adapter,
see pages 8.67-8.68.

Drawer length Min. installation depth Item No.
457 (18") 479 (18 7/8") 433.20.548
533 (21") 555 (21 7/8") 433.20.556
610 (24") 632 (24 7/8") 433.20.564
*686 (27") 708 (27 7/8") 433.20.571
*762 (30") 784 (30 7/8") 433.20.579
Flat Head
#6
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
8
Inside drawer width = Inside cabinet width - 50 (1 31/32") +0, -1.5
max. 19
(3/4") 4 (5/32") Setback
min. 479 (18 7/8")
min. 7 457 (18")
(1/4")
min. 53
10 (2 1/16")
(3/8") min. 555 (21 7/8") Drawer Slides
533 (21")
37 max. 13
(1 7/16") (1/2")
min. 10
(3/8")
min. 632 (24 7/8")
25 25 610 (24")
(31/32") Inside cabinet width (31/32")
min. 708 (27 7/8")
37
(1 7/16") 686 (27") *
9 (3/8") 10
6.3 (1/4") (25/64")
min. 784 (30 7/8")
762 (30")
36 *
24 (1 7/16")
(15/16")
Setback 4 (5/32") 517 453 389 261 69 37 10
*57 kg (125 lbs.) weight capacity for extended lengths

Flat head screws pages 12.7-12.8, 12.10, 12.13
Varianta screws page 12.16
