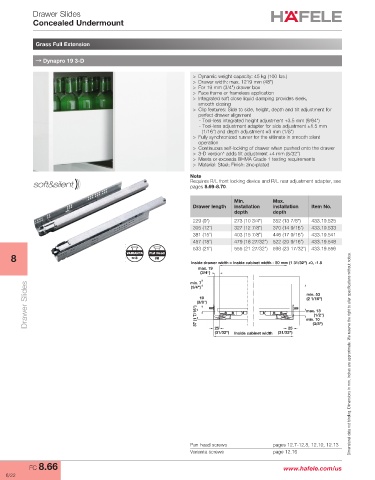

Drawer Slides
Concealed Undermount

Grass Full Extension

→ Dynapro 19 3-D

> Dynamic weight capacity: 45 kg (100 lbs.)
> Drawer width: max. 1219 mm (48")
> For 19 mm (3/4") drawer box
> Face frame or frameless application
> Integrated soft close liquid damping provides sleek,
smooth closing
> Clip features: Side to side, height, depth and tilt adjustment for
perfect drawer alignment
- Tool-less integrated height adjustment +3.5 mm (9/64")
- Tool-less adjustment adapter for side adjustment ±1.5 mm
(1/16") and depth adjustment +3 mm (1/8")
> Fully synchronized runner for the ultimate in smooth silent
operation
> Continuous self-locking of drawer when pushed onto the drawer
> 3-D version* adds tilt adjustment +4 mm (5/32")
> Meets or exceeds BHMA Grade 1 testing requirements
> Material: Steel; Finish: zinc-plated
Note
Requires R/L front locking device and R/L rear adjustment adapter, see
pages 8.69-8.70.

Min. Max.
Drawer length installation installation Item No.
depth depth
229 (9") 273 (10 3/4") 352 (13 7/8") 433.19.525
305 (12") 327 (12 7/8") 370 (14 9/16") 433.19.533
381 (15") 403 (15 7/8") 446 (17 9/16") 433.19.541
457 (18") 479 (18 27/32") 522 (20 9/16") 433.19.548
533 (21") 555 (21 27/32") 598 (23 17/32") 433.19.556
8 VARIANTA Flat Head
3
#6
Inside drawer width = Inside cabinet width - 50 mm (1 31/32") +0, -1.5
max. 19
(3/4")
min. 7
Drawer Slides 37 (1 7/16") (3/8") min. 53
(1/4")
10
(2 1/16")
max. 13
(1/2")
(3/8")
25
25
(31/32") Inside cabinet width (31/32") min. 10 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Pan head screws pages 12.7-12.8, 12.10, 12.13
Varianta screws page 12.16
FC 8.66 www.hafele.com/us
