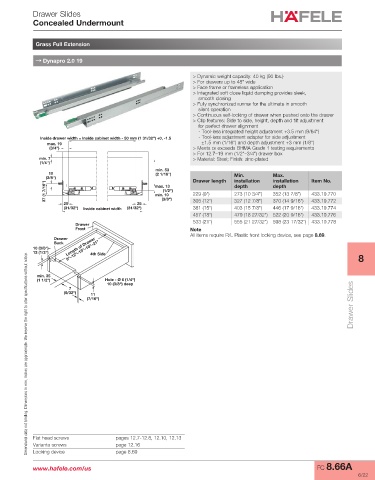

Drawer Slides
Concealed Undermount

Grass Full Extension

→ Dynapro 2.0 19

> Dynamic weight capacity: 40 kg (90 lbs.)
> For drawers up to 48" wide
> Face frame or frameless application
> Integrated soft close liquid damping provides sleek,
smooth closing
> Fully synchronized runner for the ultimate in smooth
silent operation
> Continuous self-locking of drawer when pushed onto the drawer
> Clip features: Side to side, height, depth and tilt adjustment
for perfect drawer alignment
- Tool-less integrated height adjustment +3.5 mm (9/64")
Inside drawer width = Inside cabinet width - 50 mm (1 31/32") +0, -1.5 - Tool-less adjustment adapter for side adjustment
max. 19 ±1.5 mm (1/16") and depth adjustment +3 mm (1/8")
(3/4") > Meets or exceeds BHMA Grade 1 testing requirements
> For 12.7–19 mm (1/2"–3/4") drawer box
min. 7 > Material: Steel; Finish: zinc-plated
(1/4")
min. 53
10 (2 1/16") Min. Max.
(3/8") Drawer length installation installation Item No.
37 (1 7/16") max. 13 229 (9") depth depth 433.19.770
(1/2")
352 (13 7/8")
273 (10 3/4")
min. 10
25 25 (3/8") 305 (12") 327 (12 7/8") 370 (14 9/16") 433.19.772
(31/32") Inside cabinet width (31/32") 381 (15") 403 (15 7/8") 446 (17 9/16") 433.19.774
457 (18") 479 (18 27/32") 522 (20 9/16") 433.19.776
533 (21") 555 (21 27/32") 598 (23 17/32") 433.19.778
Drawer
Front Note
All items require R/L Plastic front locking device, see page 8.69.
Drawer
Back
10 (3/8")– Length of Drawer
13 (1/2") 9"–12"–15"–18"–21" 8
4th Side
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
min. 35
(1 1/2") Hole - Ø 6 (1/4")
Drawer Slides
10 (3/8") deep
7
(9/32") 11
(7/16")

Flat head screws pages 12.7-12.8, 12.10, 12.13
Varianta screws page 12.16
Locking device page 8.69

www.hafele.com/us FC 8.66A
6/22
