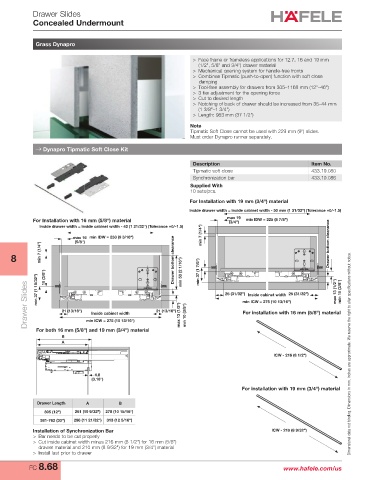

Drawer Slides
Concealed Undermount

Grass Dynapro

> Face frame or frameless applications for 12.7, 16 and 19 mm
(1/2", 5/8" and 3/4") drawer material
> Mechanical opening system for handle-free fronts
> Combines Tipmatic (push-to-open) function with soft close
damping
> Tool-free assembly for drawers from 305–1168 mm (12"–46")
> 3 tier adjustment for the opening force
> Cut to desired length
> Notching of back of drawer should be increased from 35–44 mm
(1 3/8"–1 3/4")
> Length: 953 mm (37 1/2")
Note
Tipmatic Soft Close cannot be used with 229 mm (9") slides.
Must order Dynapro runner separately.

→ Dynapro Tipmatic Soft Close Kit

Description Item No.
Tipmatic soft close 433.19.080
Synchronization bar 433.19.086
Supplied With
10 sets/pcs.
For Installation with 19 mm (3/4") material
Inside drawer width = Inside cabinet width - 50 mm (1 31/32") (Tolerance +0/-1.5)
For Installation with 16 mm (5/8") material
For Installation with 16 mm (5/8") material max 19 min IDW = 225 (8 7/8")
(3/4")
Inside drawer width = Inside cabinet width - 42 (1 21/32") (Tolerance +0/-1.5)
max 16 min IDW = 233 (9 3/16") min 7 (1/4") Drawer bottom clearance
(5/8")
min 7 (1/4")
8 10 (3/8") Drawer bottom clearance min 53 (2 1/16") min 37 (1 7/6")

Drawer Slides min 37 (1 15/32") 21 (13/16") Inside cabinet width 21 (13/16") max 13 (1/2") min 10 (3/8") 25 (31/32") Inside cabinet width 25 (31/32") max 13 (1/2") min 10 (3/8")

min ICW = 275 (10 13/16")
For installation with 16 mm (5/8") material
min ICW = 275 (10 13/16")
For both 16 mm (5/8") and 19 mm (3/4") material
B
A

ICW - 216 (8 1/2") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

4.8
(3.16")
For installation with 19 mm (3/4") material

Drawer Length A B
305 (12") 261 (10 9/32") 278 (10 15/16")
381-762 (30") 296 (11 21/32") 313 (12 5/16")
Installation of Synchronization Bar ICW - 210 (8 9/32")
> Bar needs to be cut properly
> Cut inside cabinet width minus 216 mm (8 1/2") for 16 mm (5/8")
drawer material and 210 mm (8 9/32") for 19 mm (3/4") material
> Install last prior to drawer
FC 8.68 www.hafele.com/us
