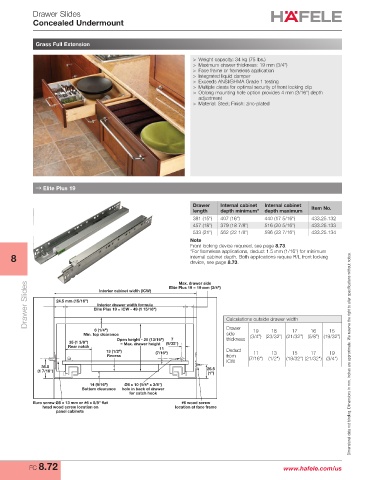

Page 746 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Drawer Slides
Concealed Undermount

Grass Full Extension

> Weight capacity: 34 kg (75 lbs.)
> Maximum drawer thickness: 19 mm (3/4")
> Face frame or frameless application
> Integrated liquid damper
> Exceeds ANSI/BHMA Grade 1 testing
> Multiple cleats for optimal security of front locking clip
> Oblong mounting hole option provides 4 mm (3/16") depth
adjustment
> Material: Steel; Finish: zinc-plated

→ Elite Plus 19

Drawer Internal cabinet Internal cabinet Item No.
length depth minimum* depth maximum
381 (15") 407 (16") 440 (17 5/16") 433.25.132
457 (18") 379 (18 7/8") 516 (20 5/16") 433.25.133
533 (21") 562 (22 1/8") 596 (23 7/16") 433.25.134
Note
Front locking device required, see page 8.73.
*For frameless applications, deduct 1.5 mm (1/16") for minimum
8 internal cabinet depth. Both applications require R/L front locking
device, see page 8.73.

Max. drawer side
Drawer Slides 24.5 mm (15/16") Elite Plus 19 = ICW - 49 (1 15/16") Elite Plus 19 = 19 mm (3/4")
Interior cabinet width (ICW)

Interior drawer width formula

Drawer
6 (1/4") Calculations outside drawer width 16 15
18
17
19
Min. top clearance side (3/4") (23/32") (21/32") (5/8") (19/32")
Open height - 20 (13/16") 7 thickness
35 (1 3/8") = Max. drawer height (9/32")
Rear notch 11
13 (1/2") (7/16") Deduct 11 13 15 17 19
Recess from Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
ICW (7/16") (1/2") (19/32") (21/32") (3/4")
36.5
(1 7/16") 25.5
(1")
14 (9/16") Ø6 x 10 (1/4" x 3/8")
Bottom clearance hole in back of drawer
for catch hook
Euro screw Ø5 x 13 mm or #6 x 5/8” flat #6 wood screw
head wood screw location on location at face frame
panel cabinets

FC 8.72 www.hafele.com/us
