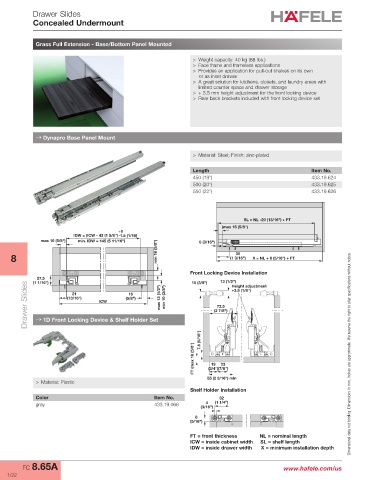

Drawer Slides
Concealed Undermount

Grass Full Extension - Base/Bottom Panel Mounted

> Weight capacity: 40 kg (88 lbs.)
> Face frame and frameless applications
> Provides an application for pull-out shelves on its own
or as inset drawer
> A great solution for kitchens, closets, and laundry areas with
limited counter space and drawer storage
> + 3.5 mm height adjustment for the front locking device
> Rear back brackets included with front locking device set

→ Dynapro Base Panel Mount

> Material: Steel; Finish: zinc-plated

Length Item No.
450 (18") 433.19.624
500 (20") 433.19.625
550 (22") 433.19.626

SL = NL -20 (13/16") + FT
(max 16 (5/8")
+0
IDW = (ICW - 42 (1 5/8") -1.5 (1/16)
max 16 (5/8") min. IDW = 145 (5 11/16") 5 (3/16")
30
8 min 16 (5/8") (1 3/16") X = NL + 8 (5/16") + FT

Front Locking Device Installation
27.5 10 (3/8") 13 (1/2")
(1 1/16")
Drawer Slides → 1D Front Locking Device & Shelf Holder Set max 13 (1/2") min 10 (3/8") (2 7/8")
Height adjustment
+3.5 (1/8")
21
16
(13/16")
(5/8")
ICW
72.5
7.5 (5/16")

FT (max 16 (5/8") (3/4")(7/8") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

19
23
55 (2 3/16") min
> Material: Plastic
Shelf Holder Installation
Color Item No. 32
4
gray 433.19.066 (3/16") (1 1/4")
8
(5/16")

FT = front thickness NL = nominal length
ICW = inside cabinet width SL = shelf length
IDW = inside drawer width X = minimum installation depth

FC 8.65A www.hafele.com/us
