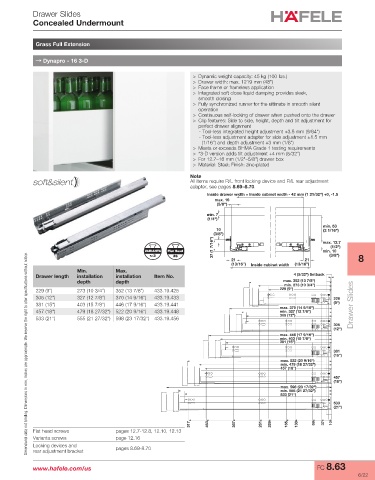

Drawer Slides
Concealed Undermount

Grass Full Extension

→ Dynapro - 16 3-D

> Dynamic weight capacity: 45 kg (100 lbs.)
> Drawer width: max. 1219 mm (48")
> Face frame or frameless application
> Integrated soft close liquid damping provides sleek,
smooth closing
> Fully synchronized runner for the ultimate in smooth silent
operation
> Continuous self-locking of drawer when pushed onto the drawer
> Clip features: Side to side, height, depth and tilt adjustment for
perfect drawer alignment
- Tool-less integrated height adjustment +3.5 mm (9/64")
- Tool-less adjustment adapter for side adjustment ±1.5 mm
(1/16") and depth adjustment +3 mm (1/8")
> Meets or exceeds BHMA Grade 1 testing requirements
> * 3-D version adds tilt adjustment +4 mm (5/32")
> For 12.7–16 mm (1/2"–5/8") drawer box
> Material: Steel; Finish: zinc-plated
Note
All items require R/L front locking device and R/L rear adjustment
adapter, see pages 8.69–8.70.
Inside drawer width = Inside cabinet width - 42 mm (1 21/32") +0, -1.5
max. 16
(5/8")
min. 7
(1/4")
min. 53
10 (2 1/16")
(3/8")
37 (1 7/16") max. 12.7
(1/2")
VARIANTA Flat Head min. 10
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
3 #6 (3/8")
21 21 8
(13/16") Inside cabinet width (13/16")
Min. Max.
Drawer length installation installation Item No. 4 (5/32") Setback
depth depth max. 352 (13 7/8")
min. 273 (10 3/4")
229 (9") 273 (10 3/4") 352 (13 7/8") 433.19.425 229 (9")
305 (12") 327 (12 7/8") 370 (14 9/16") 433.19.433 229
381 (15") 403 (15 7/8") 446 (17 9/16") 433.19.441 max. 370 (14 9/16") (9") Drawer Slides
457 (18") 479 (18 27/32") 522 (20 9/16") 433.19.448 min. 327 (12 7/8")
533 (21") 555 (21 27/32") 598 (23 17/32") 433.19.456 305 (12")
305
(12")
max. 446 (17 9/16")
min. 403 (15 7/8")
381 (15")
381
(15")
max. 522 (20 9/16")
min. 479 (18 27/32")
457 (18")
457
(18")
max. 598 (23 17/32")
min. 555 (21 27/32")
533 (21")
533
(21")

517 453 357 261 229 165 133 69 37 10
Flat head screws pages 12.7-12.8, 12.10, 12.13
Varianta screws page 12.16
Locking devices and pages 8.69-8.70
rear adjustment bracket
