Drawer Slides
Concealed Undermount

Salice Full Extension

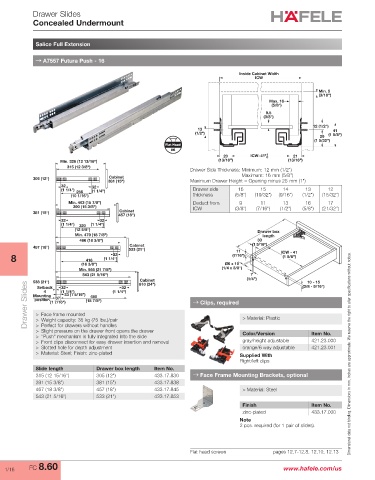

→ A7557 Futura Push - 16
Inside Cabinet Width
ICW

Min. 5
(3/16")
Max. 16
(5/8")
9.5
(3/8")
12 (1/2")
13 41
(1/2") (1 5/8")
29
(1 5/32")
Flat Head
#6
20 ICW - 41 21
Min. 326 (12 13/16") (13/16") (13/16")
315 (12 3/8")
Drawer Side Thickness: Minimum: 12 mm (1/2")
305 (12") Cabinet Maximum: 16 mm (5/8")
381 (15") Maximum Drawer Height = Opening minus 25 mm (1")
32 32
(1 1/4") 256 (1 1/4") Drawer side 16 15 14 13 12
(10 1/16") thickness (5/8") (19/32") (9/16") (1/2") (15/32")
Min. 403 (15 7/8") Deduct from 9 11 13 16 17
390 (15 3/8") ICW (3/8") (7/16") (1/2") (5/8") (21/32")
381 (15") Cabinet
457 (18")
32 32
(1 1/4") 320 (1 1/4")
(12 5/8") Drawer box
Min. 479 (18 7/8") length
466 (18 3/8") 33
Cabinet
457 (18") 533 (21") 11 (1 5/16") ICW - 41
32
8 416 (1 1/4") (7/16") (1 5/8")
(16 3/8") Ø6 x 10
Min. 555 (21 7/8") (1/4 x 3/8")
543 (21 5/16") 32 610 (24") (1/4") (3/8 - 9/16")
7
Cabinet
10 - 15
533 (21")
Drawer Slides Mounting (1 7/16") 33 (1 5/16") (18 7/8") (1 1/4") → Clips, required > Material: Plastic
32
Setback
4
(1 1/4")
480
37
position
> Face frame mounted
> Weight capacity: 35 kg (75 lbs.)/pair
> Perfect for drawers without handles
> Slight pressure on the drawer front opens the drawer Color/Version Item No.
> "Push" mechanism is fully integrated into the slide
> Front clips disconnect for easy drawer insertion and removal gray/height adjustable 421.23.000
> Slotted hole for depth adjustment orange/6 way adjustable 421.23.001
> Material: Steel; Finish: zinc-plated Supplied With Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Right/left clips
Slide length Drawer box length Item No.
315 (12 15/16") 305 (12") 433.17.830 → Face Frame Mounting Brackets, optional
391 (15 3/8") 381 (15") 433.17.838
467 (18 3/8") 457 (18") 433.17.845 > Material: Steel
543 (21 5/16") 533 (21") 433.17.853
Finish Item No.
zinc-plated 433.17.000
Note
2 pcs. required (for 1 pair of slides).

Flat head screws pages 12.7-12.8, 12.10, 12.13
FC 8.60
