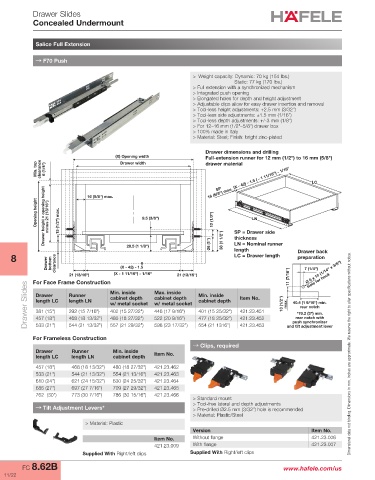

Drawer Slides
Concealed Undermount

Salice Full Extension

→ F70 Push

> Weight capacity: Dynamic: 70 kg (154 lbs.)
Static: 77 kg (170 lbs.)
> Full extension with a synchronized mechanism
> Integrated push opening
> Elongated holes for depth and height adjustment
> Adjustable clips allow for easy drawer insertion and removal
> Tool-less height adjustments: +2.5 mm (3/32")
> Tool-less side adjustments: ±1.5 mm (1/16")
> Tool-less depth adjustments: +/-3 mm (1/8")
> For 12–16 mm (1/2"–5/8") drawer box
> 100% made in Italy
> Material: Steel; Finish: bright zinc-plated

Drawer dimensions and drilling
(X) Opening width Full-extension runner for 12 mm (1/2") to 16 mm (5/8")
Min. top clearance 6 (1/4") Drawer width drawer material LC
16 (5/8") max. (X - 42) - 1.5 ( - 1 11/16") - 1/16"

SP
Drawer height = opening height minus 21 (13/16") 13 (1/2") max. 9.5 (3/8") 12 (1/2") SP = Drawer side
Opening height 16 (5/8") max.

LN

LN = Nominal runner
length
LC = Drawer length
8 28.5 (1 1/8") 26 (1") 38 (1 1/2") thickness Drawer back
preparation
Drawer bottom clearance (X - 42) - 1.5 0 7 (1/4")
Hole for hook
21 (13/16") (X - 1 11/16") - 1/16" 21 (13/16") 11 (7/16") Ø 6 x 10 (1/14" x 3/8")
For Face Frame Construction
Drawer Slides Drawer Runner Min. inside Max. inside Min. inside Item No. 13 (1/2") max. 40.4 (1 9/16") min.
cabinet depth
cabinet depth
cabinet depth
length LN
length LC
w/ metal socket
w/ metal socket
rear notch
392 (15 7/16")
401 (15 25/32")
381 (15")
421.23.451
446 (17 9/16")
402 (15 27/32")
*76.2 (3") min.
477 (18 25/32")
522 (20 9/16")
421.23.452
457 (18")
rear notch with
468 (18 13/32")
480 (18 27/32")
push synchronizer
533 (21")
544 (21 13/32")
For Frameless Construction 557 (21 29/32") 598 (23 17/32") 554 (21 1316") 421.23.453 and tilt adjustment lever
→ Clips, required
Drawer Runner Min. inside Item No.
length LC length LN cabinet depth Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
457 (18") 468 (18 13/32") 480 (18 27/32") 421.23.462
533 (21") 544 (21 13/32") 554 (21 13/16") 421.23.463
610 (24") 621 (24 15/32") 630 (24 25/32") 421.23.464
686 (27") 697 (27 7/16") 709 (27 29/32") 421.23.465
762 (30") 773 (30 7/16") 786 (30 15/16") 421.23.466
> Standard mount
> Tool-free lateral and depth adjustments
→ Tilt Adjustment Levers* > Pre-drilled Ø2.5 mm (3/32") hole is recommended
> Material: Plastic/Steel
> Material: Plastic
Version Item No.
Item No. Without flange 421.23.006
421.23.009 With flange 421.23.007
Supplied With Right/left clips Supplied With Right/left clips
FC 8.62B www.hafele.com/us
11/22
