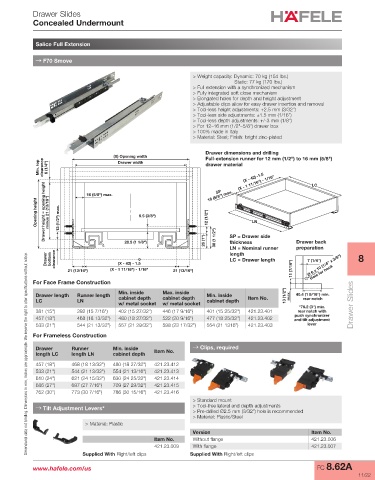

Page 729 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Drawer Slides
Concealed Undermount

Salice Full Extension

→ F70 Smove

> Weight capacity: Dynamic: 70 kg (154 lbs.)
Static: 77 kg (170 lbs.)
> Full extension with a synchronized mechanism
> Fully integrated soft close mechanism
> Elongated holes for depth and height adjustment
> Adjustable clips allow for easy drawer insertion and removal
> Tool-less height adjustments: +2.5 mm (3/32")
> Tool-less side adjustments: ±1.5 mm (1/16")
> Tool-less depth adjustments: +/-3 mm (1/8")
> For 12–16 mm (1/2"–5/8") drawer box
> 100% made in Italy
> Material: Steel; Finish: bright zinc-plated

Drawer dimensions and drilling
(X) Opening width Full-extension runner for 12 mm (1/2") to 16 mm (5/8")
Min. top clearance 6 (1/4") Drawer width drawer material (X - 42) -1.5 LC

(X - 1 11/16") - 1/16"
Drawer height = opening height 16 (5/8") max. 16 (5/8") max.
SP
Opening height minus 21 (13/16") 13 (1/2") max. 9.5 (3/8") 12 (1/2") LN

38 (1 1/2")
SP = Drawer side
26 (1")
thickness
28.5 (1 1/8")
preparation
LN = Nominal runner Drawer back
length
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Drawer bottom clearance (X - 42) - 1.5 0 LC = Drawer length 7 (1/4") 8
Ø 6 x 10 (1/4" x 3/8")
21 (13/16") (X - 1 11/16") - 1/16" 21 (13/16") 11 (7/16") Hole for hook
For Face Frame Construction
Min. inside Max. inside
Drawer length Runner length cabinet depth cabinet depth Min. inside Item No. 13 (1/2") max. 40.4 (1 9/16") min.
LC LN w/ metal socket w/ metal socket cabinet depth rear notch
*76.2 (3") min. Drawer Slides
381 (15") 392 (15 7/16") 402 (15 27/32") 446 (17 9/16") 401 (15 25/32") 421.23.401 rear notch with
push synchronizer
457 (18") 468 (18 13/32") 480 (18 27/32") 522 (20 9/16") 477 (18 25/32") 421.23.402 and tilt adjustment
533 (21") 544 (21 13/32") 557 (21 29/32") 598 (23 17/32") 554 (21 1316") 421.23.403 lever
For Frameless Construction
Drawer Runner Min. inside → Clips, required
length LC length LN cabinet depth Item No.
457 (18") 468 (18 13/32") 480 (18 27/32") 421.23.412
533 (21") 544 (21 13/32") 554 (21 13/16") 421.23.413
610 (24") 621 (24 15/32") 630 (24 25/32") 421.23.414
686 (27") 697 (27 7/16") 709 (27 29/32") 421.23.415
762 (30") 773 (30 7/16") 786 (30 15/16") 421.23.416
> Standard mount
→ Tilt Adjustment Levers* > Tool-free lateral and depth adjustments
> Pre-drilled Ø2.5 mm (3/32") hole is recommended
> Material: Plastic/Steel
> Material: Plastic
Version Item No.
Item No. Without flange 421.23.006
421.23.009 With flange 421.23.007
Supplied With Right/left clips Supplied With Right/left clips

www.hafele.com/us FC 8.62A
11/22
