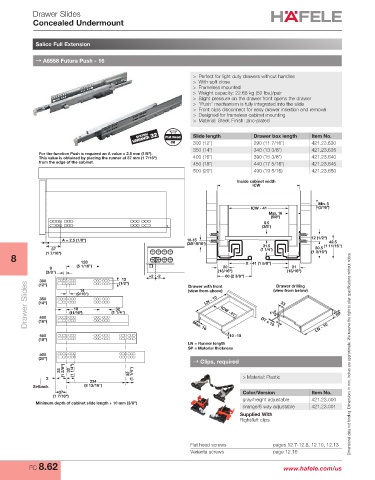

Page 728 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Drawer Slides
Concealed Undermount

Salice Full Extension

→ A6558 Futura Push - 16

> Perfect for light duty drawers without handles
> With soft close
> Frameless mounted
> Weight capacity: 22.68 kg (50 lbs.)/pair
> Slight pressure on the drawer front opens the drawer
> "Push" mechanism is fully integrated into the slide
> Front clips disconnect for easy drawer insertion and removal
> Designed for frameless cabinet mounting
> Material: Steel; Finish: zinc-plated

Flat Head Slide length Drawer box length Item No.
#6 300 (12") 290 (11 7/16") 421.23.630
350 (14") 340 (13 3/8") 421.23.635
For the function Push is required an A value = 2.5 mm (1/8").
This value is obtained by placing the runner at 37 mm (1 7/16") 400 (16") 390 (15 3/8") 421.23.640
from the edge of the cabinet. 450 (18") 440 (17 5/16") 421.23.645
500 (20") 490 (19 5/16) 421.23.650
Inside cabinet width
ICW

Min. 5
ICW - 41 (3/16")
Max. 16
(5/8")
9.5
(3/8")
A = 2.5 (1/8") 10-15 12 (1/2") 42.5
(3/8"-9/16") 31.5 (1 11/16")
30.5
37 (1 1/4") (1 3/16")
(1 7/16")
8 128
9 (5 1/16") 20 X - 41 (1 5/8") 21
(3/8") (13/16") (13/16")
+2 -2 60 (2 3/8")
12
300 14 (1/2") Drawer with front (view from below)
Drawer Slides (14") (11/16") (1 1/4") LN - 10 ICW - 41 11 33 SP
(12")
Drawer drilling
(view from above)
(9/16")
350
18
32
400
(16")
450 Max. 16 10 -15 Ø7 x 10 7 LN - 10
(18")
LN = Runner length
SP = Material thickness
500 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(20")
→ Clips, required
(1 3/8") 32 (1 1/4")
35 32 (1 1/4")
2 > Material: Plastic
224
Setback (8 13/16")
37 Color/Version Item No.
(1 7/16")
gray/height adjustable 421.23.000
Minimum depth of cabinet slide length + 10 mm (3/8")
orange/6 way adjustable 421.23.001
Supplied With
Right/left clips

Flat head screws pages 12.7-12.8, 12.10, 12.13
Varianta screws page 12.16
FC 8.62 www.hafele.com/us
