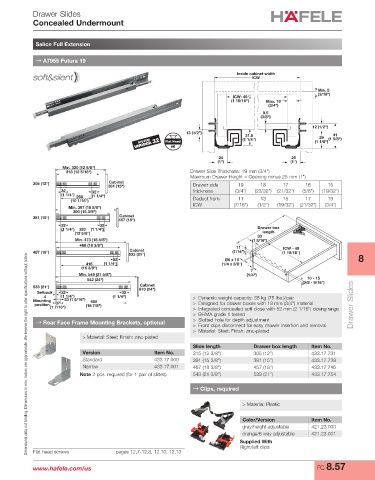

Page 723 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Drawer Slides
Concealed Undermount

Salice Full Extension

→ A7955 Futura 19
Inside cabinet width
ICW

Min. 5
(3/16")
ICW - 49
(1 15/16") Max. 19
(3/4")
9.5
(3/8")
12 (1/2")
13 (1/2") 31.5 41
(1 1/4") 29 (1 5/8")
Flat Head (1 1/8")
#6
24 25
(1") (1")
Min. 320 (12 5/8")
313 (12 5/16") Drawer Side Thickness: 19 mm (3/4")
Maximum Drawer Height = Opening minus 25 mm (1")
305 (12") Cabinet Drawer side 19 18 17 16 15
381 (15")
32 32 thickness (3/4") (23/32") (21/32") (5/8") (19/32")
(1 1/4") 256 (1 1/4")
(10 1/16") Deduct from 11 13 15 17 19
Min. 397 (15 5/8") ICW (7/16") (1/2") (19/32") (21/32") (3/4")
390 (15 3/8")
381 (15") Cabinet
457 (18")
32 32 Drawer box
(1 1/4") 320 (1 1/4")
(12 5/8") 33 length
Min. 473 (18 5/8") (1 5/16")
466 (18 3/8") 11 ICW - 49
Cabinet
457 (18") 533 (21") (7/16") (1 15/16")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
32 Ø6 x 10 8
416 (1 1/4") (1/4 x 3/8")
(16 3/8")
7
Min. 549 (21 5/8") (1/4")
10 - 15
542 (24") (3/8 - 9/16")
Cabinet
533 (21") 610 (24")
Setback 32 32
4 (1 1/4") (1 1/4") > Dynamic weight capacity: 35 kg (75 lbs.)/pair
Mounting 33 (1 5/16") 480
position 37 (18 7/8") > Designed for drawer boxes with 19 mm (3/4") material Drawer Slides
(1 7/16") > Integrated concealed soft close with 52 mm (2 1/16") closing range
> BHMA grade 1 tested
→ Rear Face Frame Mounting Brackets, optional > Slotted hole for depth adjustment
> Front clips disconnect for easy drawer insertion and removal
> Material: Steel; Finish: zinc-plated
> Material: Steel; Finish: zinc-plated
Slide length Drawer box length Item No.
Version Item No. 315 (12 3/8") 305 (12") 433.17.731
Standard 433.17.000 391 (15 3/8") 381 (15") 433.17.739
Narrow 433.17.001 467 (18 3/8") 457 (18") 433.17.746
Note 2 pcs. required (for 1 pair of slides). 543 (21 3/8") 533 (21") 433.17.754
→ Clips, required

> Material: Plastic

Color/Version Item No.
gray/height adjustable 421.23.000
orange/6 way adjustable 421.23.001
Supplied With
Right/left clips
Flat head screws pages 12.7-12.8, 12.10, 12.13

www.hafele.com/us FC 8.57
