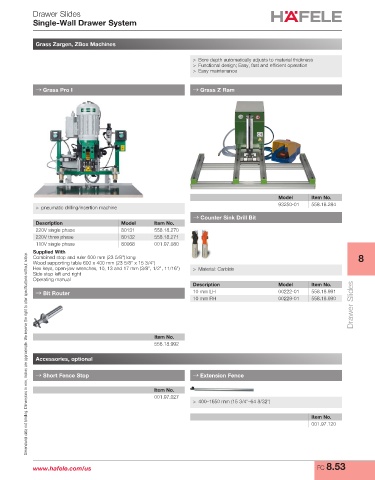

Drawer Slides
Single-Wall Drawer System

Grass Zargen, ZBox Machines

> Bore depth automatically adjusts to material thickness
> Functional design; Easy, fast and efficient operation
> Easy maintenance

→ Grass Pro I → Grass Z Ram

Model Item No.
93250-01 558.18.284
> pneumatic drilling/insertion machine
→ Counter Sink Drill Bit
Description Model Item No.
220V single phase 80131 558.18.270
220V three phase 80132 558.18.271
110V single phase 80068 001.97.080
Supplied With
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Combined stop and ruler 600 mm (23 5/8") long 8
Wood supporting table 600 x 400 mm (23 5/8" x 15 3/4")
Hex keys, open-jaw wrenches, 10, 13 and 17 mm (3/8", 1/2", 11/16") > Material: Carbide
Side stop left and right
Operating manual
Drawer Slides
Description Model Item No.
→ Bit Router 10 mm LH 00222-01 558.18.991
10 mm RH 00229-01 558.18.990

Item No.
558.18.992
Accessories, optional

→ Short Fence Stop → Extension Fence

Item No.
001.97.027
> 400–1650 mm (15 3/4"–64 8/32")

Item No.
001.97.120

www.hafele.com/us FC 8.53
