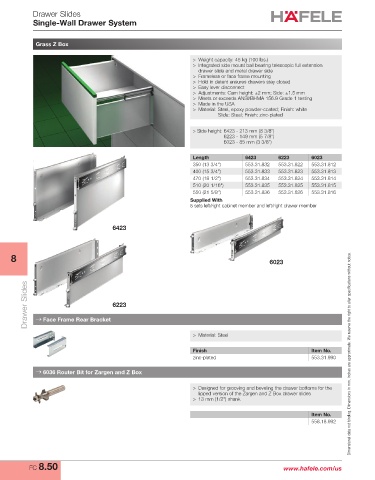

Drawer Slides
Single-Wall Drawer System

Grass Z Box

> Weight capacity: 45 kg (100 lbs.)
> Integrated side mount ball bearing telescopic full extension
drawer slide and metal drawer side
> Frameless or face frame mounting
> Hold in detent ensures drawers stay closed
> Easy lever disconnect
> Adjustments: Cam height: ±2 mm; Side: ±1.5 mm
> Meets or exceeds ANSI/BHMA 156.9 Grade 1 testing
> Made in the USA
> Material: Steel, epoxy powder-coated; Finish: white
Slide: Steel; Finish: zinc-plated

> Side height: 6423 - 213 mm (8 3/8")
6223 - 149 mm (5 7/8")
6023 - 85 mm (3 3/8")

Length 6423 6223 6023
350 (13 3/4") 553.31.832 553.31.822 553.31.812
400 (15 3/4") 553.31.833 553.31.823 553.31.813
470 (18 1/2") 553.31.834 553.31.824 553.31.814
510 (20 1/16") 553.31.835 553.31.825 553.31.815
550 (21 5/8") 553.31.836 553.31.826 553.31.816
Supplied With
5 sets left/right cabinet member and left/right drawer member

6423

8 6023

Drawer Slides → Face Frame Rear Bracket 6223

> Material: Steel

Finish Item No.
zinc-plated 553.31.990 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

→ 6036 Router Bit for Zargen and Z Box

> Designed for grooving and beveling the drawer bottoms for the
lipped version of the Zargen and Z Box drawer slides
> 13 mm (1/2") shank

Item No.
558.18.992

FC 8.50 www.hafele.com/us
