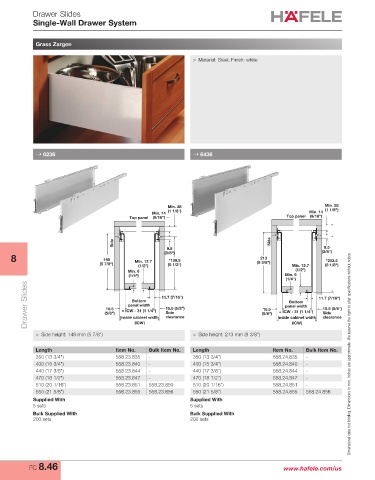

Drawer Slides
Single-Wall Drawer System

Grass Zargen

> Material: Steel; Finish: white

→ 6236 → 6436

Min. 28 Min. 28
(1 1/8")
Min. 14 (1 1/8") Min. 14
Top panel (9/16") Top panel (9/16")

Side Side
9.5 9.5
(3/8") (3/8")
8 149 *139.5 213 *203.5
(5 7/8") Min. 12.7 (5 1/2") (8 3/8") Min. 12.7 (8 1/8")
(1/2")
Min. 6 (1/2")
(1/4") Min. 6
(1/4")
Drawer Slides (5/8") Inside cabinet width 11.7 (7/16") (5/8") Inside cabinet width 11.7 (7/16")

Bottom
Bottom
panel width
panel width
15.5 (5/8")
15.5 (5/8")
15.5
15.5
= ICW - 31 (1 1/4")
= ICW - 31 (1 1/4")
Side
Side
clearance
clearance
> Side height: 149 mm (5 7/8") (ICW) > Side height: 213 mm (8 3/8") (ICW)
Length Item No. Bulk Item No. Length Item No. Bulk Item No.
350 (13 3/4") 558.23.835 - 350 (13 3/4") 558.24.835 - Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
400 (15 3/4") 558.23.840 - 400 (15 3/4") 558.24.840 -
440 (17 3/8") 558.23.844 - 440 (17 3/8") 558.24.844 -
470 (18 1/2") 558.23.847 - 470 (18 1/2") 558.24.847 -
510 (20 1/16") 558.23.851 558.23.850 510 (20 1/16") 558.24.851 -
550 (21 5/8") 558.23.855 558.23.856 550 (21 5/8") 558.24.855 558.24.856
Supplied With Supplied With
5 sets 5 sets
Bulk Supplied With Bulk Supplied With
200 sets 200 sets
