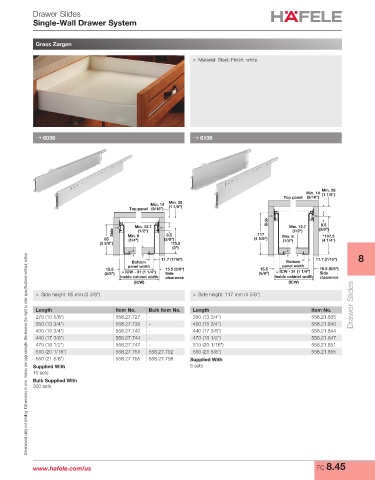

P. 711
Drawer Slides
Single-Wall Drawer System
Grass Zargen
> Material: Steel; Finish: white
→ 6036 → 6136
Min. 28
Min. 14 (1 1/8")
Top panel (9/16")
Min. 14 Min. 28
(1 1/8")
Top panel (9/16")
Side
9.5
Min. 12.7 Min. 12.7 (3/8")
Side (1/2") 9.5 117 (1/2")
*107.5
85 Min. 6 (3/8") (4 5/8") Min. 6 (4 1/4")
(1/4")
(1/4")
(3 3/8") *75.5
(3")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
11.7 (7/16") 11.7 (7/16") 8
Bottom Bottom
panel width panel width
15.5 15.5 (5/8") 15.5 15.5 (5/8")
(5/8") = ICW - 31 (1 1/4") Side (5/8") = ICW - 31 (1 1/4") Side
Inside cabinet width clearance Inside cabinet width clearance
(ICW) (ICW)
> Side height: 85 mm (3 3/8") > Side height: 117 mm (4 5/8")
Length Item No. Bulk Item No. Length Item No. Drawer Slides
270 (10 5/8") 558.27.727 - 350 (13 3/4") 558.21.835
350 (13 3/4") 558.27.735 - 400 (15 3/4") 558.21.840
400 (15 3/4") 558.27.740 - 440 (17 3/8") 558.21.844
440 (17 3/8") 558.27.744 - 470 (18 1/2") 558.21.847
470 (18 1/2") 558.27.747 - 510 (20 1/16") 558.21.851
510 (20 1/16") 558.27.751 558.27.752 550 (21 5/8") 558.21.855
550 (21 5/8") 558.27.755 558.27.756 Supplied With
Supplied With 5 sets
10 sets
Bulk Supplied With
300 sets
www.hafele.com/us FC 8.45
