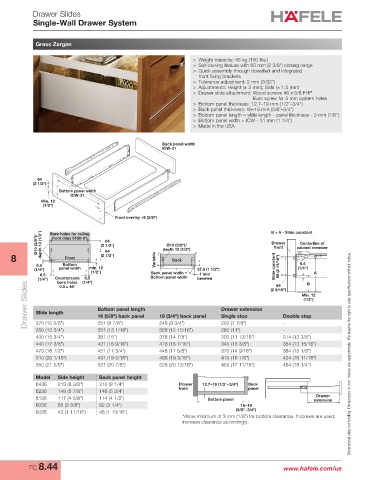

Drawer Slides
Single-Wall Drawer System

Grass Zargen

> Weight capacity: 45 kg (100 lbs.)
> Self-closing feature with 60 mm (2 3/8") closing range
> Quick assembly through dowelled and integrated
front fixing brackets
> Tolerance adjustment: 2 mm (3/32")
> Adjustments: Height (± 2 mm); Side (± 1.5 mm)
> Drawer slide attachment: Wood screws #6 x 5/8 FHP
Euro screw for 5 mm system holes
> Bottom panel thickness: 12.7–19 mm (1/2"–3/4")
> Back panel thickness: 16–19 mm (5/8"–3/4")
> Bottom panel length = slide length - panel thickness - 3 mm (1/8")
> Bottom panel width = ICW - 31 mm (1 1/4")
> Made in the USA

Back panel width
ICW-31

64
(2 1/2")
Bottom panel width
ICW-31
Min. 12
(1/2")

Front overlay +9 (3/8")

Ø10 (3/8")/ depth 12 (1/2") Bore holes for railing (2 1/2") depth 12 (1/2") B = A - Slide constant
front clips 6150-01
64
Drawer
Centerline of
Ø10 (3/8")/
front
cabinet member
64
8 Front (2 1/2") Variable Back
6.5 Bottom Slide constant 69 (2 11/16") 6.5
(1/4") panel width min. 12 37.5 (1 1/2") (1/4")
(1/2")
6.5 Back panel width = 1 mm A
Bottom panel width
6.5
(1/4") Countersunk (1/4") beveled (2 9/16") B
bore holes
Drawer Slides Slide length Bottom panel length 19 (3/4") back panel Drawer extension Double stop
64
0.5 x 45°
Min. 12
(1/2")
Single stop
16 (5/8") back panel
270 (10 5/8")
280 (11")
328 (12 15/16")
331 (13 1/16")
350 (13 3/4") 251 (9 7/8") 248 (9 3/4") 200 (7 7/8") - -
400 (15 3/4") 381 (15") 378 (14 7/8") 300 (11 13/16") 314 (12 3/8")
440 (17 3/8") 421 (16 9/16") 418 (16 7/16") 340 (13 3/8") 354 (13 15/16")
470 (18 1/2") 451 (17 3/4") 448 (17 5/8") 370 (14 9/16") 384 (15 1/8") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
510 (20 1/16") 491 (19 5/16") 488 (19 3/16") 410 (16 1/8") 424 (16 11/16")
550 (21 5/8") 531 (20 7/8") 528 (20 13/16") 450 (17 11/16") 464 (18 1/4")
Model Side height Back panel height
6436 213 (8 3/8") 210 (8 1/4") Drawer 12.7−19 (1/2"−3/4") Back
6236 149 (5 7/8") 146 (5 3/4") front panel
Drawer
6136 117 (4 5/8") 114 (4 1/2") Bottom panel extension
6036 85 (3 3/8") 82 (3 1/4") 16−19
6035 43 (1 11/16") 46 (1 13/16") (5/8"−3/4")
*Allow minimum of 3 mm (1/8") for bottom clearance. If screws are used,
increase clearance accordingly.

FC 8.44 www.hafele.com/us
